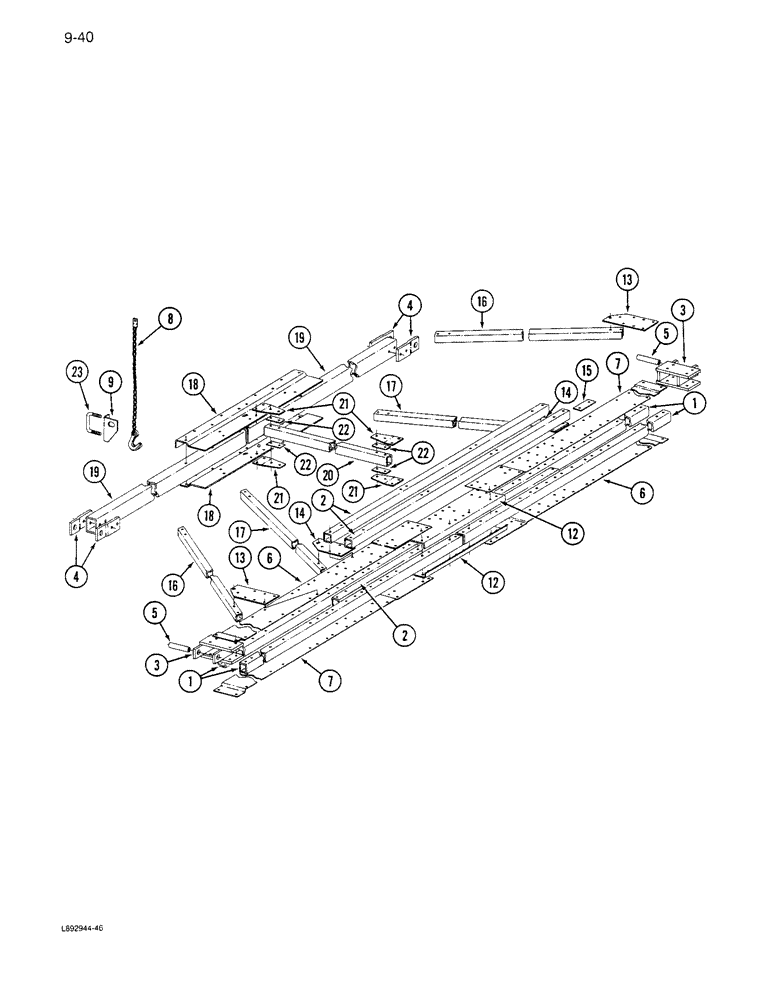

Запчасти Case IH 6300 (9-040) - CENTER HITCH AND STABILIZER FOUR DRILL, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7 (09) - CHASSIS/ATTACHMENTS

1

819874C2

TUBE

BRACE - hitch main frame front

4шт.

2

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

3шт.

90811C1

BAR

- spacer, center of front brace

1шт.

3

819889C1

PIVOT

- wing front

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

4

841130C1

BAR

- frame connecting

4шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

5

1279421C1

SPACER

- hitch pivot

2шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

6

841078C2

SUPPORT

- front tube right top and left lower

2шт.

7

841077C2

TUBE

SUPPORT - front tube right lower and left top

2шт.

8

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, Grade 8

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

2шт.

9

841153C1

ANGLE

- frame support chain

2шт.

12

819879C2

SUPPORT

- front extension

2шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

13

819876C2

BAR

- diagonal brace tube outer

4шт.

14

841082C1

BAR

- diagonal brace tube inner

4шт.

15

843179C1

BAR

- center reinforcing tube spacer (12-1/2 foot drills)

2шт.

16

819882C2

TUBE,2171.7 mm Length

- diagonal brace outer

2шт.

17

819883C1

TUBE,101.5" Length

- diagonal brace inner

2шт.

18

841137C1

SUPPORT

- rear extension

2шт.

19

841133C1

TUBE,2742 mm Length

- hitch main frame rear

2шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

6шт.

425-1010

NUT,5/8"-11, G5

6шт.

20

841132C1

TUBE

BRACE - hitch center connecting

1шт.

21

841134C1

BAR

- tube mounting

4шт.

22

841142C1

BAR

- tube mounting spacer

11шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

10шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

24шт.

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

8шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

12шт.

425-1010

NUT,5/8"-11, G5

1шт.

23

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.
