Запчасти Case IH 6300 (9-038) - CENTER HITCH AND STABILIZER FOUR DRILL, 16 X 6 AND 20 X 6 (09) - CHASSIS/ATTACHMENTS

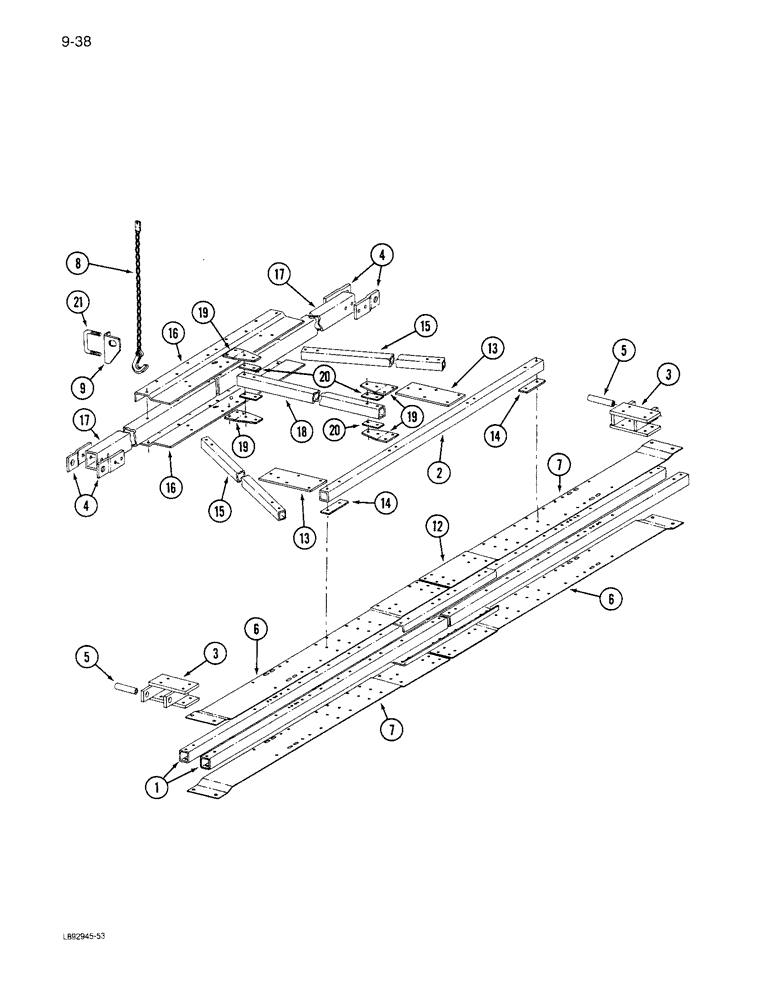

Схема запчастей Case IH 6300 - (9-038) - CENTER HITCH AND STABILIZER FOUR DRILL, 16 X 6 AND 20 X 6 (09) - CHASSIS/ATTACHMENTS
7
20
17
3
14
20
5
13
15
19
16
13
6
7
19
4
1
4
2
17
15
8
5
18
6
3
19
14
21
9
16
12

Артикул

Название

Примечание

Количество

1

819683C1

TUBE,2245 mm Length

SUPPORT - hitch main frame front

4шт.

2

818118C2

TUBE,2021 mm Length

BRACE - center reinforcing

1шт.

3

819889C1

PIVOT

- wing front

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

4

841130C1

BAR

- frame connecting

4шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

5

1279421C1

SPACER

- hitch pivot

2шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

6

841169C1

SUPPORT

- front tube right lower and left top

2шт.

7

841168C1

SUPPORT

- front tube right top and left lower

2шт.

8

819901C2

CHAIN (AG)

CHAIN - frame support

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

-flat, 13/32 x 1 x 7/64 inch

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

841153C1

ANGLE

- frame support chain

2шт.

12

819879C2

SUPPORT

- front extension

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

13

841111C1

BAR

- diagonal brace tube (20x6)

4шт.

13

841108C1

BAR

- diagonal brace tube (16x6)

4шт.

14

843179C1

BAR

- center reinforcing tube spacer (For 12-1/2 foot drill)

2шт.

15

841200C1

TUBE

BRACE - diagonal

2шт.

16

841137C1

SUPPORT

- rear extension

2шт.

17

841167C1

TUBE,2208.2 mm Length

BEAM - hitch main frame rear

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

6шт.

18

841132C1

TUBE

BRACE - hitch center connecting

1шт.

19

841134C1

BAR

- tube mounting

4шт.

20

841142C1

BAR

- tube mounting spacer

6шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

6шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

18шт.

113-654

BOLT,Hex, 5/8" - 11 x 7", Gr 5

8шт.

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

34шт.

21

812659C1

BOLT,5/8" - 11 x 4.4"

U-BOLT - support chain angle

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

Выбрано товаров: 51
