Запчасти Case IH 6300 (9-032) - HITCH THREE DRILL HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

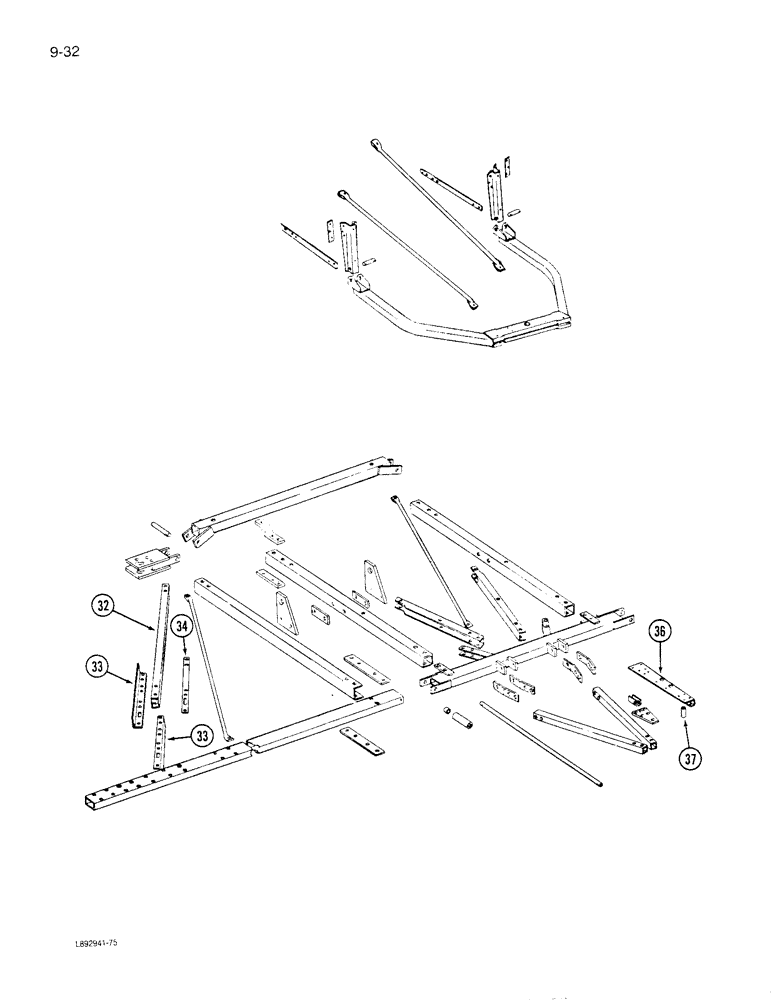

Схема запчастей Case IH 6300 - (9-032) - HITCH THREE DRILL HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
36
32
33
33
34
37

Артикул

Название

Примечание

Количество

32

819661C2

TUBE,101.5" Length

- wing diagonal (24x6, 28x6, 20x7, 24x7)

2шт.

32

819798C3

TUBE

- wing diagonal (16x6, 20x6)

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

33

1279410C1

ANGLE

- diagonal tube tie (24x6, 28x6, 20x7, 24x7)

4шт.

34

1279411C1

BAR

BRACE - diagonal tube tie (16x6, 20x6)

4шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

36

817757C1

EXTENSION

- hitch

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

6шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

- hex, 5/8 NC x 6-1/2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

495-81179

WASHER,21/32" x 1 1/4" x .179"

- flat, 21/32 x 1-1/4 x 5/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

14шт.

37

817758C1

SPACER

- extension

2шт.

Выбрано товаров: 20
