Запчасти Case IH 6300 (9-030) - HITCH THREE DRILL HEAVY DUTY, CONTINUED ON (09) - CHASSIS/ATTACHMENTS

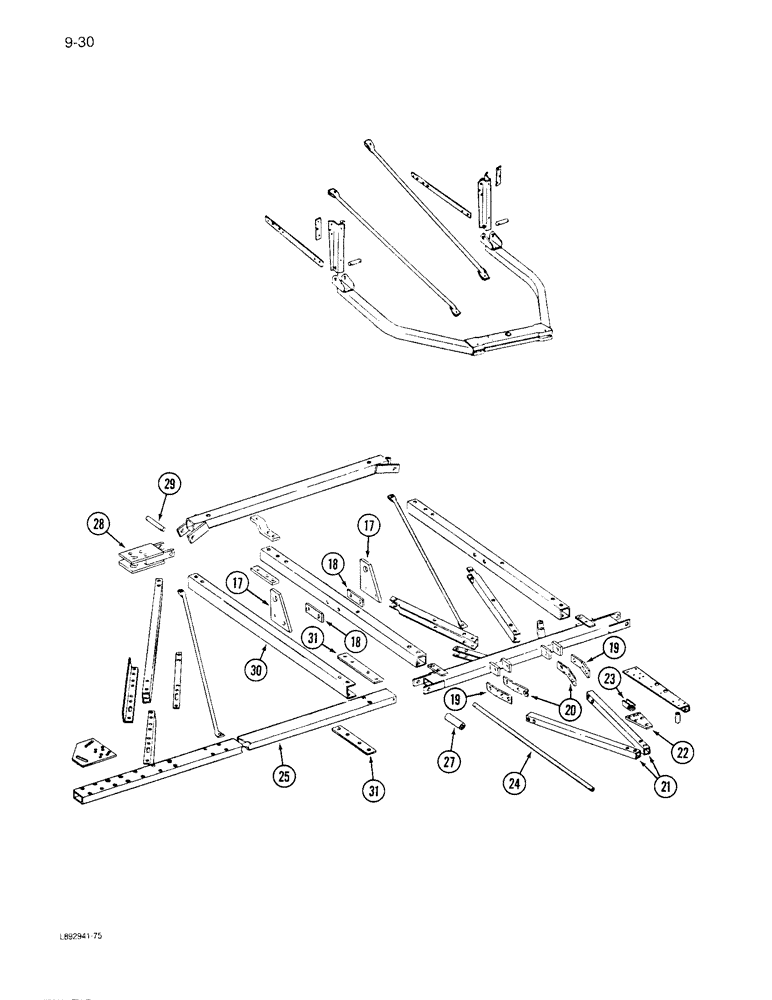

Схема запчастей Case IH 6300 - (9-030) - HITCH THREE DRILL HEAVY DUTY, CONTINUED ON (09) - CHASSIS/ATTACHMENTS
23
18
30
18
17
22
25
29
31
31
19
20
27
28
21
17
24
19

Артикул

Название

Примечание

Количество

17

819641C1

BAR

- basic hitch support anchor

4шт.

18

819778C1

BAR

SPACER - anchor bar

4шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

19

819644C1

SUPPORT

- front hitch tube, outer

2шт.

20

819643C1

SUPPORT

- front hitch tube, inner

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN - headed, 1 x 5-5/8 inch

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

PIN - cotter, 1/4 x 1-1/2 inch

2шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

21

819013C2

TUBE,56.55" Length

- hitch front

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

22

819001C1

PLATE

- hitch front

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

23

819018C2

CHANNEL

- transport tube support front

3шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

819668C1

TUBE

- hitch transport

1шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN - headed, 3/8 x 2-1/4 inch

2шт.

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair

2шт.

25

1279424C1

TUBE

BEAM - wing (24x6, 28x6, 20x7, 24x7)

2шт.

25

1279423C1

TUBE,2474.6 mm Length

BEAM - wing (20x6, 16x6)

2шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

27

1279421C1

SPACER

- pivot

2шт.

28

819656C2

SUPPORT

- wing rear

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

29

819724C1

PIN

- pivot

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

4шт.

30

819662C1

CHANNEL

- wing side

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

31

819664C1

BAR

- side channel connecting

4шт.

Выбрано товаров: 39
