Запчасти Case IH 6300 (9-028) - HITCH THREE DRILL HEAVY DUTY, CONTINUED (09) - CHASSIS/ATTACHMENTS

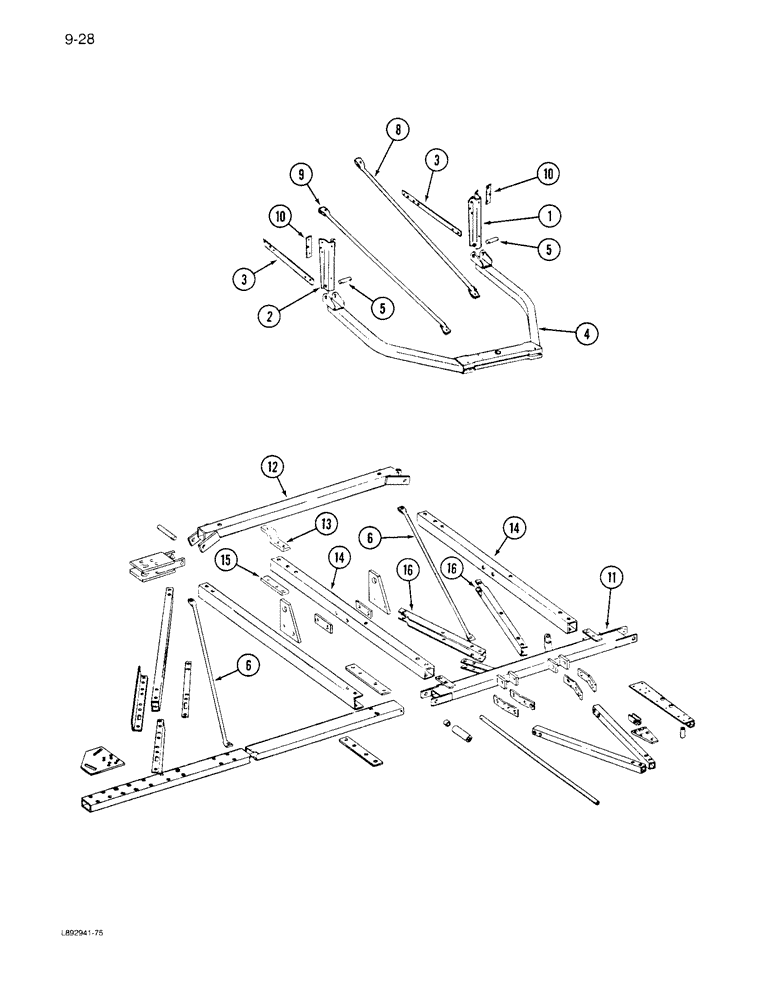

Схема запчастей Case IH 6300 - (9-028) - HITCH THREE DRILL HEAVY DUTY, CONTINUED (09) - CHASSIS/ATTACHMENTS
4
6
10
15
16
6
12
10
16
14
3
2
5
9
1
13
11
14
8
5
3

Артикул

Название

Примечание

Количество

1

1279119C1

CHANNEL

SUPPORT - hitch left (16x6)

3шт.

1

1279123C1

CHANNEL

SUPPORT - hitch left (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

2

1279120C1

CHANNEL

SUPPORT - hitch right (16x6)

3шт.

2

1279124C1

CHANNEL

SUPPORT - hitch right (20x6, 24x6, 28x6, 20x7, 24x7)

3шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

3

1279125C1

BAR

BRACE - hitch support (16x6)

6шт.

3

1279127C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7, 24x7)

6шт.

3

1279126C1

BAR

BRACE - hitch support (20x6)

6шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

24шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

12шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.

4

REF

INSTRUCTION

HITCH - basic (Use one each on left and right side). (See Page 9-7)

2шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

818251C1

PIN

- hitch pivot channel

4шт.

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

8шт.

6

1279789C1

BRACE

- hitch left and right, 47 inch

2шт.

8

818383C2

BRACE

SUPPORT - hitch left

2шт.

9

818384C2

BRACE

SUPPORT - hitch right

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

10

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.

11

819636C1

BEAM

- center front

1шт.

12

819783C1

BEAM

- center rear

1шт.

13

819792C1

SUPPORT

- side tube

2шт.

14

819637C4

TUBE,1872, 31.75 mm Length

- center side

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

8шт.

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

425-1010

NUT,5/8"-11, G5

2шт.

15

819793C1

BAR

- center side tube reinforcing lower

2шт.

16

819640C3

CHANNEL

- front corner

2шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.
