Запчасти Case IH 6300 (9-022) - HITCH TWO DRILL HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

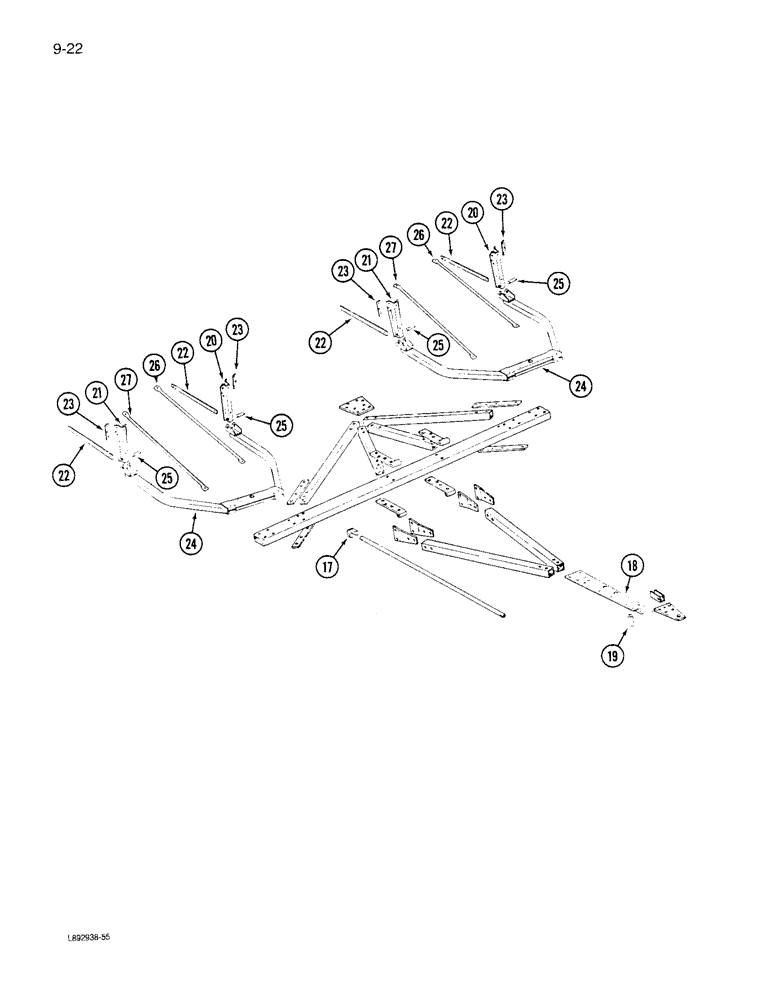

Схема запчастей Case IH 6300 - (9-022) - HITCH TWO DRILL HEAVY DUTY (09) - CHASSIS/ATTACHMENTS
20
21
24
17
27
25
23
21
18
20
23
22
26
22
19
27
22
22
23
23
25
26
25
24
25

Артикул

Название

Примечание

Количество

17

819010C1

YOKE

- tube support

1шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

18

817757C1

EXTENSION

- hitch (Use with track eraser)

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

- hex, 5/8 NC x 6-1/2 inch

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

21793R1

WASHER

- flat, 21/32 x 1-1/4 x 5/32 inch

4шт.

19

817758C1

SPACER

- extension

2шт.

20

1279119C1

CHANNEL

SUPPORT - hitch left (16x6)

2шт.

20

1279123C1

CHANNEL

SUPPORT - hitch left (20x6, 24x6, 28x6, 20x7, 24x7)

2шт.

21

1279120C1

CHANNEL

SUPPORT - hitch right

2шт.

21

815983C2

SUPPORT

- hitch right (20x6, 24x6, 28x6, 20x7, 24x7)

2шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

22

1279125C1

BAR

BRACE - hitch support (16x6)

4шт.

22

1279127C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7, 24x7)

4шт.

22

1279126C1

BAR

BRACE - hitch support (20x6)

4шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

16шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

8шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

23

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.

24

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

2шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

25

818251C1

PIN

- hitch pivot channel

2шт.

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

8шт.

26

818383C2

BRACE

SUPPORT - hitch left

2шт.

27

818384C2

BRACE

SUPPORT - hitch right

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

8шт.

Выбрано товаров: 40
