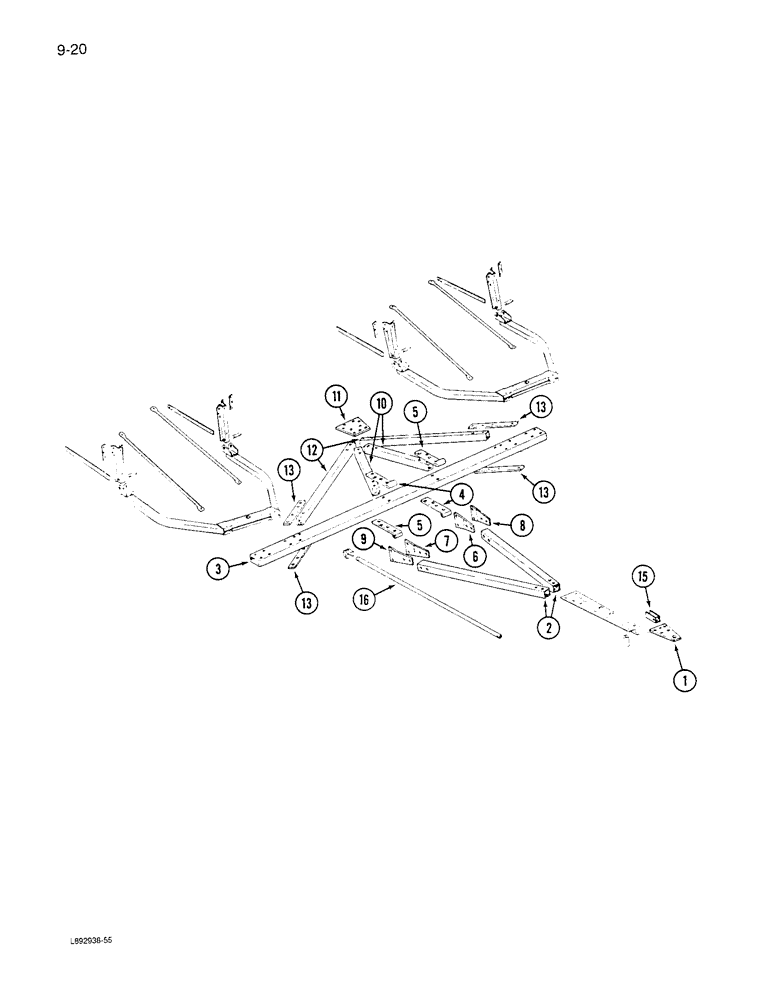

Запчасти Case IH 6300 (9-020) - HITCH TWO DRILL HEAVY DUTY, CONTINUED (09) - CHASSIS/ATTACHMENTS

1

819001C1

PLATE

- hitch front

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

2

819013C2

TUBE,56.55" Length

- hitch front

2шт.

3

819006C3

TUBE,138.4" Length

- hitch cross (16x6, 20x6)

1шт.

3

819007C2

TUBE,180.4" Length

- center hitch (24x6, 28x6, 20x7, 24x7)

1шт.

4

819011C1

SUPPORT

- hitch hinge lower left

2шт.

5

819012C1

SUPPORT

- hitch hinge lower right

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

819002C1

PLATE

- hitch hinge left inner

1шт.

7

819003C1

PLATE

- hitch hinge right inner

1шт.

8

819004C1

PLATE

- hitch hinge left outer

1шт.

9

819005C1

PLATE

- hitch hinge right outer

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

Q3795

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch

4шт.

1978739C1

PIN

- hair

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

10

819016C1

TUBE,30.46" Length

- hitch stabilizer center (24x6, 28x6, 20x7, 24x7)

2шт.

10

819014C1

TUBE,25.17" Length

- hitch stabilizer center (16x6, 20x6)

2шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

11

819009C1

PLATE

- hitch stabilizer rear

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8x 4 inch

8шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

12

819015C2

TUBE,47.3" Length

- hitch stabilizer outer (16x6, 20x6)

2шт.

12

819017C1

TUBE,60.2" Length

- hitch stabilizer outer (24x6, 28x6, 20x7, 24x7)

2шт.

13

819021C2

BAR

- outer tube support (20x6, 16x6)

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

13

819008C1

ANGLE

BAR - outer tube support (24x6, 28x6, 20x7, 24x7)

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

15

819018C2

CHANNEL

- transport tube support front

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

16

1279788C1

SUPPORT TUBE,26.7 mm OD, 1556 mm Length

TUBE - hitch transport support

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

2шт.
