Запчасти Case IH 6300 (9-012) - HITCH SUPPORTS, MULTIPLE DRILLS (09) - CHASSIS/ATTACHMENTS

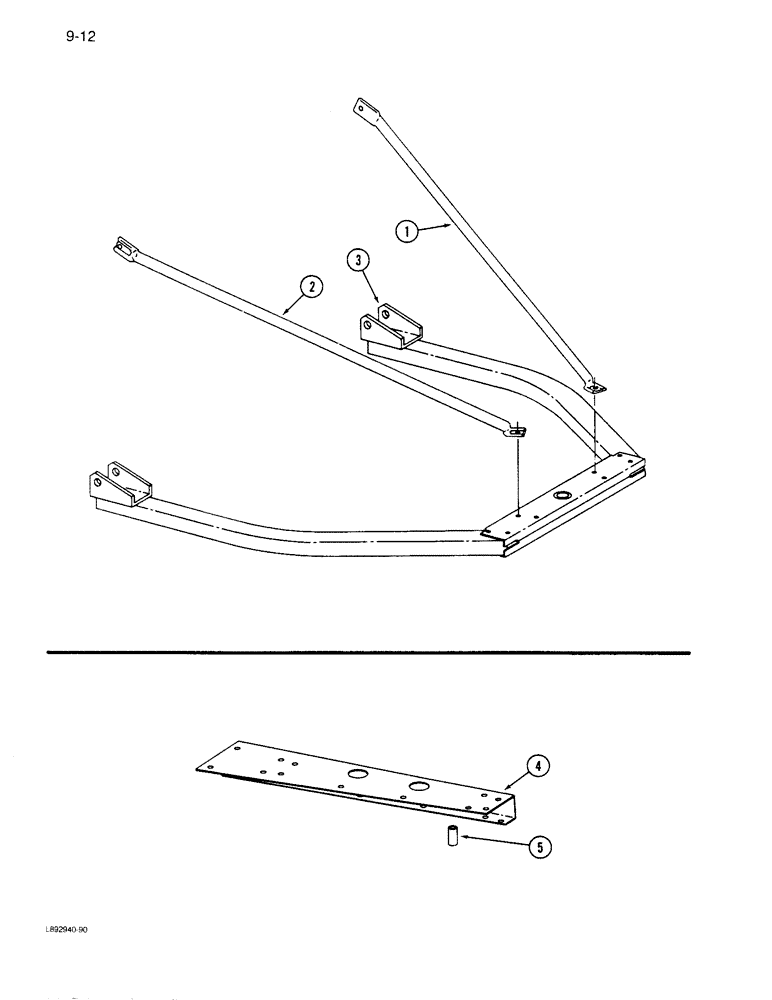

Схема запчастей Case IH 6300 - (9-012) - HITCH SUPPORTS, MULTIPLE DRILLS (09) - CHASSIS/ATTACHMENTS
4
2
3
5
1

Артикул

Название

Примечание

Количество

1

818383C2

BRACE

SUPPORT - hitch, left

1шт.

2

818384C2

BRACE

SUPPORT - hitch, right

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

2шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

3

REF

INSTRUCTION

HITCH - basic (See Page 9-7)

1шт.

4

817757C1

EXTENSION

- hitch

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Hitch extension Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch , hitch extension

6шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch , hitch extension

3шт.

826199C1

BOLT,Adj, Hex, 5/8" - 11 x 6.50"

- hex, 5/8 NC x 6-1/2 inch , hitch extension

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hitch extension 5/8"

14шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch , hitch extension

8шт.

495-81179

WASHER,21/32" x 1 1/4" x .179"

- flat, 21/32 x 1-1/4 x 5/32 inch , hitch extension

4шт.

425-1010

NUT,5/8"-11, G5

Hitch extension 5/8"-11, G5

14шт.

5

817758C1

SPACER

- extension , hitch

2шт.

Выбрано товаров: 17
