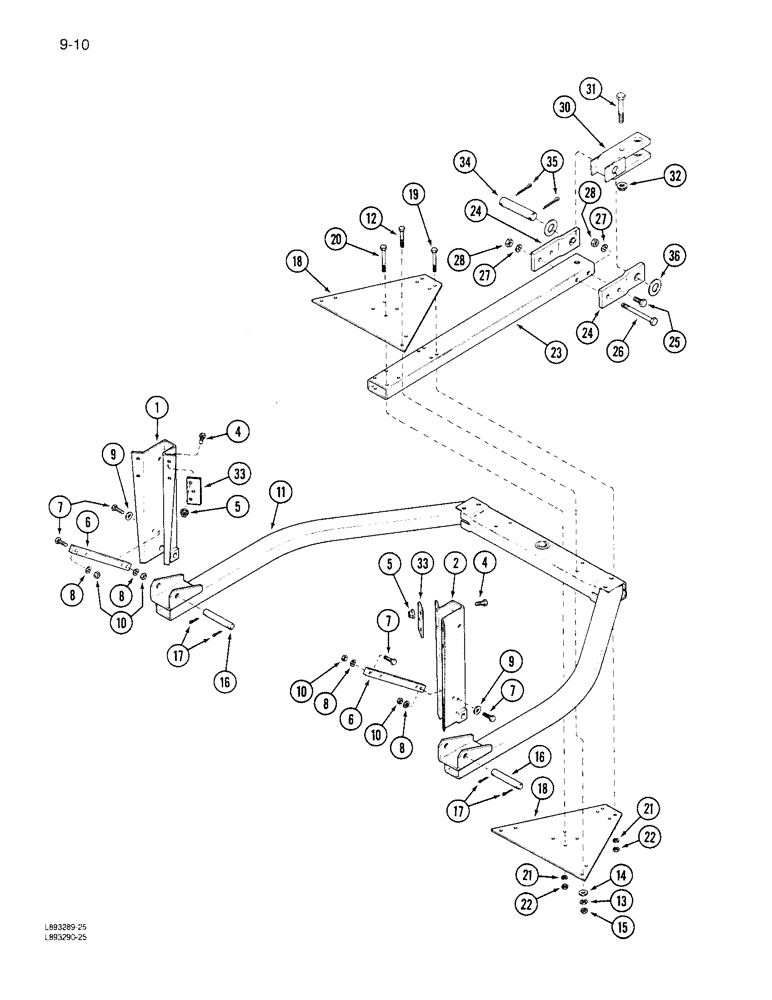

Запчасти Case IH 6300 (9-010) - SINGLE DRILL HITCH (09) - CHASSIS/ATTACHMENTS

1

1279119C1

CHANNEL

SUPPORT - hitch left (16x6)

1шт.

1

1279123C1

CHANNEL

SUPPORT - hitch left (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

2

1279120C1

CHANNEL

SUPPORT - hitch right (16x6)

1шт.

2

1279124C1

CHANNEL

SUPPORT - hitch right (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

5

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

6

1279125C1

BAR

BRACE - hitch support (16x6)

2шт.

6

1279127C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7, 24x7)

2шт.

6

1279126C1

BAR

BRACE - hitch support (20x6)

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

9

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

818349C2

TRAILER HITCH

HITCH - basic

1шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

16

818251C1

PIN

- hitch pivot channel

2шт.

17

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

18

818354C1

PLATE

- hitch

2шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

11шт.

20

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

23

818355C1

TUBE,1093 mm Length

- hitch

1шт.

24

1344549C1

TRAILER HITCH

BRACE - clevis pivot

2шт.

25

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

26

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

28

425-1010

NUT,5/8"-11, G5

3шт.

30

1333760C1

CLEVIS

ASSEMBLY - hitch

1шт.

31

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

32

608595R1

NUT

- hex lock, 5/8 inch NC

1шт.

33

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.

34

819724C1

PIN

- pivot

1шт.

35

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

36

495-81203

WASHER,1 9/32" x 2" x .120"

- 1-9/32 x 2 x 1/8 inch

4шт.
