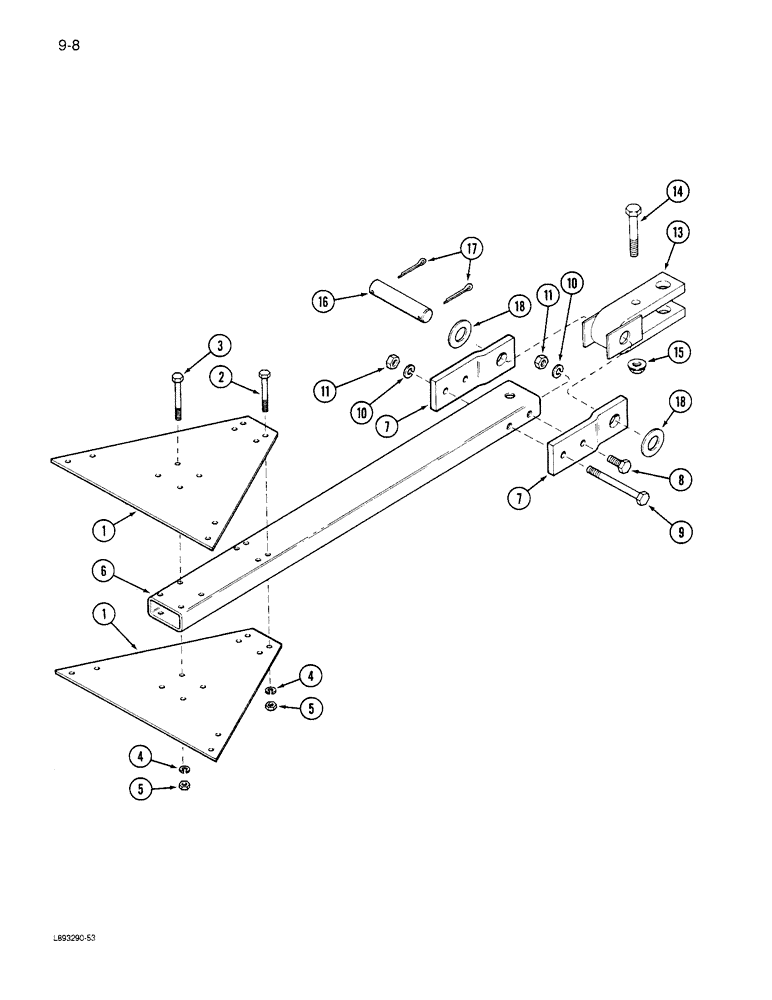

Запчасти Case IH 6300 (9-008) - FRONT HITCH SINGLE DRILL (09) - CHASSIS/ATTACHMENTS

1

818354C1

PLATE

- hitch

2шт.

2

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

11шт.

3

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

6

818355C1

TUBE,1093 mm Length

- hitch

1шт.

7

1344549C1

TRAILER HITCH

BRACE - clevis pivot

2шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

9

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

11

425-1010

NUT,5/8"-11, G5

3шт.

13

1333760C1

CLEVIS

ASSEMBLY - hitch

1шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

15

608595R1

NUT

- hex lock, 5/8 inch NC

1шт.

16

819724C1

PIN

- pivot

1шт.

17

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

18

495-81203

WASHER,1 9/32" x 2" x .120"

- 1-9/32 x 2 x 1/8 inch

4шт.
