Запчасти Case IH 6300 (9-006) - BASIC HITCH (09) - CHASSIS/ATTACHMENTS

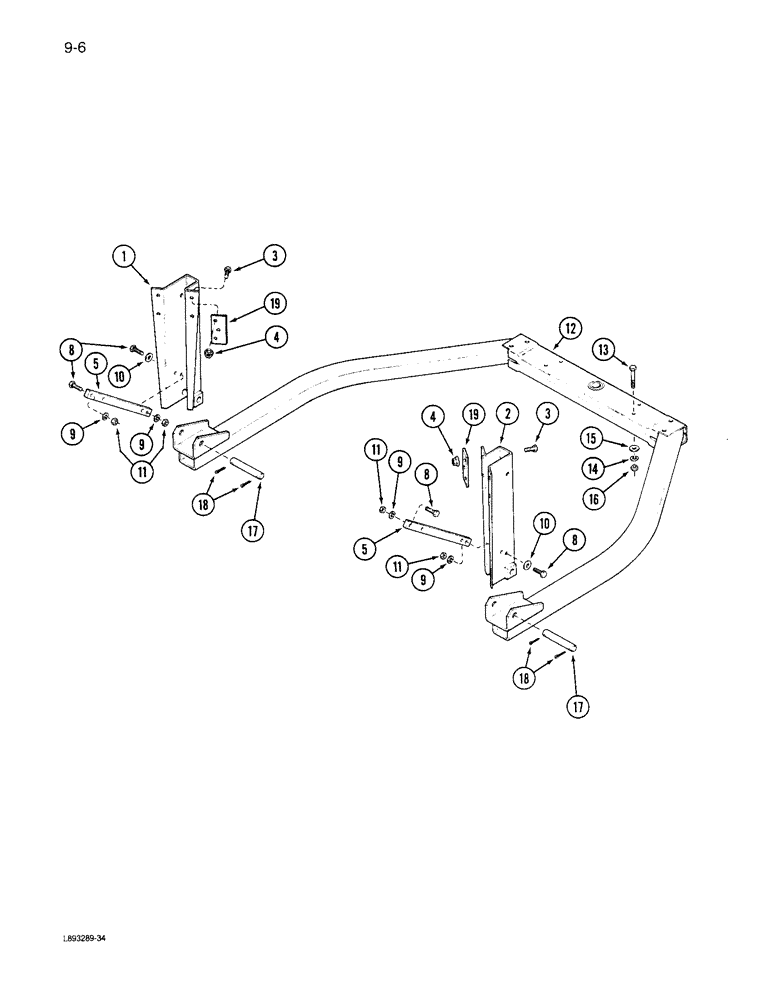

Схема запчастей Case IH 6300 - (9-006) - BASIC HITCH (09) - CHASSIS/ATTACHMENTS
4
9
18
16
9
15
13
19
17
9
5
11
5
8
17
14
2
12
3
4
8
11
9
1
10
3
18
19
11
8
10

Артикул

Название

Примечание

Количество

1

1279119C1

CHANNEL

SUPPORT - hitch left (16x6)

1шт.

1

1279123C1

CHANNEL

SUPPORT - hitch left (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

2

1279120C1

CHANNEL

SUPPORT - hitch right (16x6)

1шт.

2

1279124C1

CHANNEL

SUPPORT - hitch right (20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

8шт.

5

1279125C1

BAR

BRACE - hitch support (16x6)

2шт.

5

1279127C1

BAR

BRACE - hitch support (24x6, 28x6, 20x7, 24x7)

2шт.

5

1279126C1

BAR

BRACE - hitch support (20x6)

2шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

10

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

12

818349C2

TRAILER HITCH

HITCH - basic

1шт.

13

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

17

818251C1

PIN

- hitch pivot channel

2шт.

18

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

19

819681C1

BAR

BRACE - hitch support upper reinforcement

4шт.

Выбрано товаров: 21
