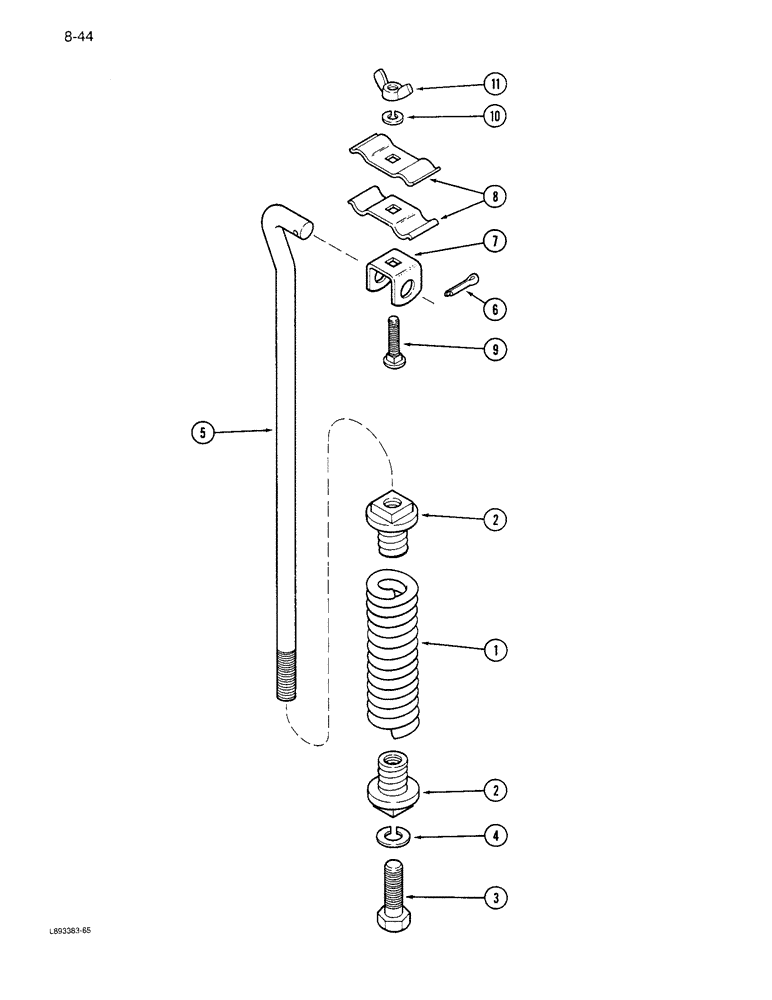

Запчасти Case IH 6300 (8-44) - HYDRAULIC HOSE SUPPORT (08) - HYDRAULICS

1

515031R11

SPRING

ASSEMBLY - hose support

1шт.

2

SA1378A

PLUG

- spring

2шт.

3

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

515028R1

ROD

- hydraulic hose support

1шт.

6

432-1216

COTTER PIN,3/16" x 1"

1шт.

7

515029R1

BRACKET

- hose clamp

2шт.

8

515030R1

CLAMP

- hose

4шт.

9

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 1-3/4 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

2шт.
