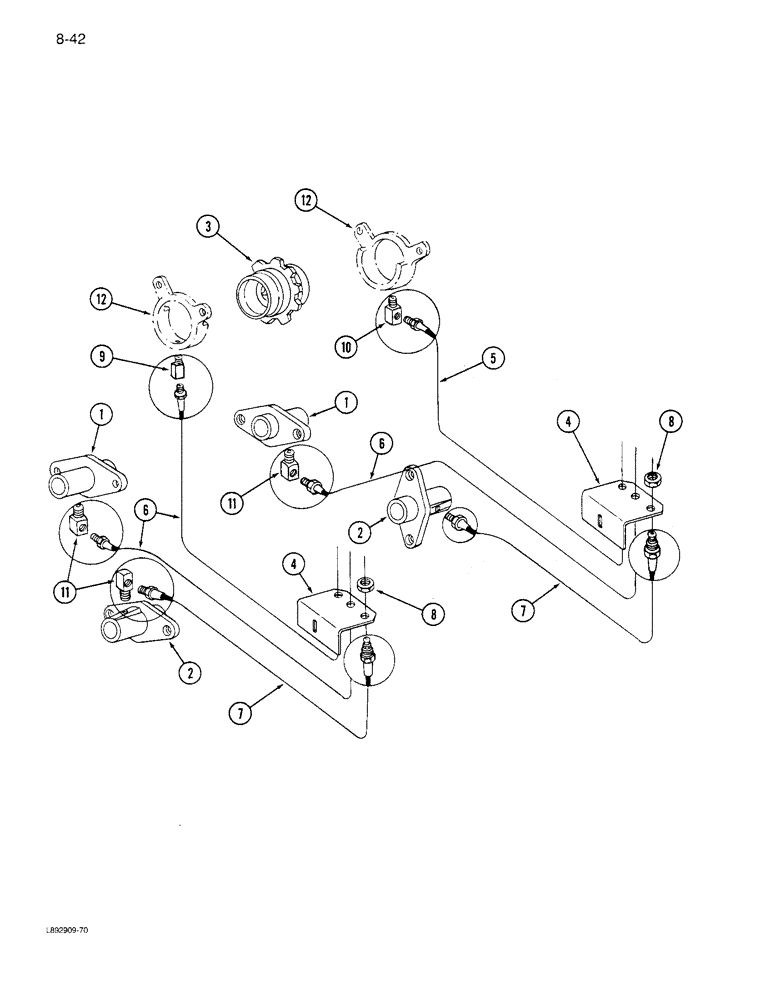

Запчасти Case IH 6300 (8-42) - LUBRICATION SYSTEM (08) - HYDRAULICS

1

603121R1

HUB CAP

BEARING - grain drive countershaft

2шт.

2

603121R1

HUB CAP

BEARING - fertilizer drive shaft

2шт.

3

817457C1

SPROCKET

- grain feedshaft drive 9 tooth

1шт.

4

818182C1

ANGLE

SUPPORT - lubrication hose

2шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

5

818307C1

HOSE

- lubrication

1шт.

6

818441C1

HOSE

- lubrication (Grain drive)

3шт.

7

818441C1

HOSE

- lubrication

2шт.

8

F53473

LOCK NUT,1/8-27 NPSM

- lubrication hose

1шт.

9

21450R1

ADAPTER,1/4"-1/8 NPTF

FITTING - grease, 1/4 inch

1шт.

10

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 1/4 inch

1шт.

11

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree, 1/8-27 inch PT (Grain drive)

2шт.

11

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degree, 1/8-27 inch PT (Fertilizer drive)

1шт.

12

817458C1

HANGER

- grain feedshaft drive sprocket

2шт.
