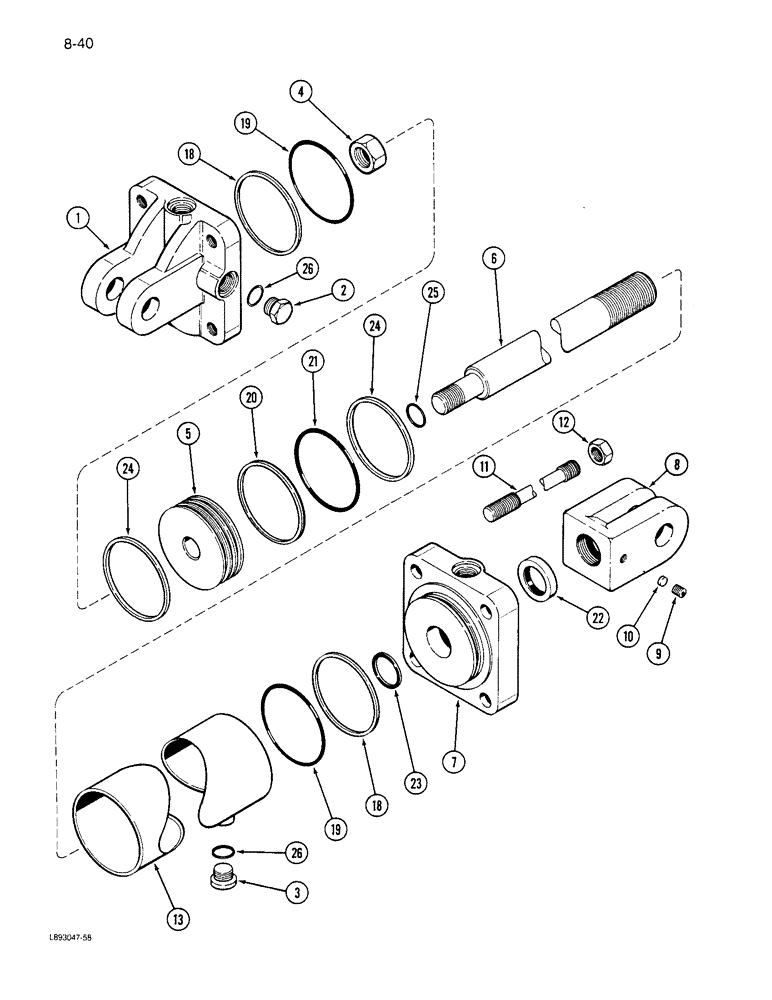

Запчасти Case IH 6300 (8-40) - HYDRAULIC CYLINDER, ENDWISE TRANSPORT, 1272844C91 (08) - HYDRAULICS

1272844C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 12 inch

1шт.

1

1272919C1

CYLINDER HEAD

HEAD - rear

1шт.

2

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

3

224582C1

PLUG

- hex socket, 3/4-16 inch, o-ring boss

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

5

149930C2

PISTON

- cylinder

1шт.

6

1267056C1

ROD

- piston

1шт.

7

1272920C1

HEAD

- cylinder, front

1шт.

8

1267057C1

CLEVIS,3/8" - 16

- rod

1шт.

9

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

80117C2

SEAL KIT

- seal

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - u-cup, rear head

1шт.

23

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

24

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
