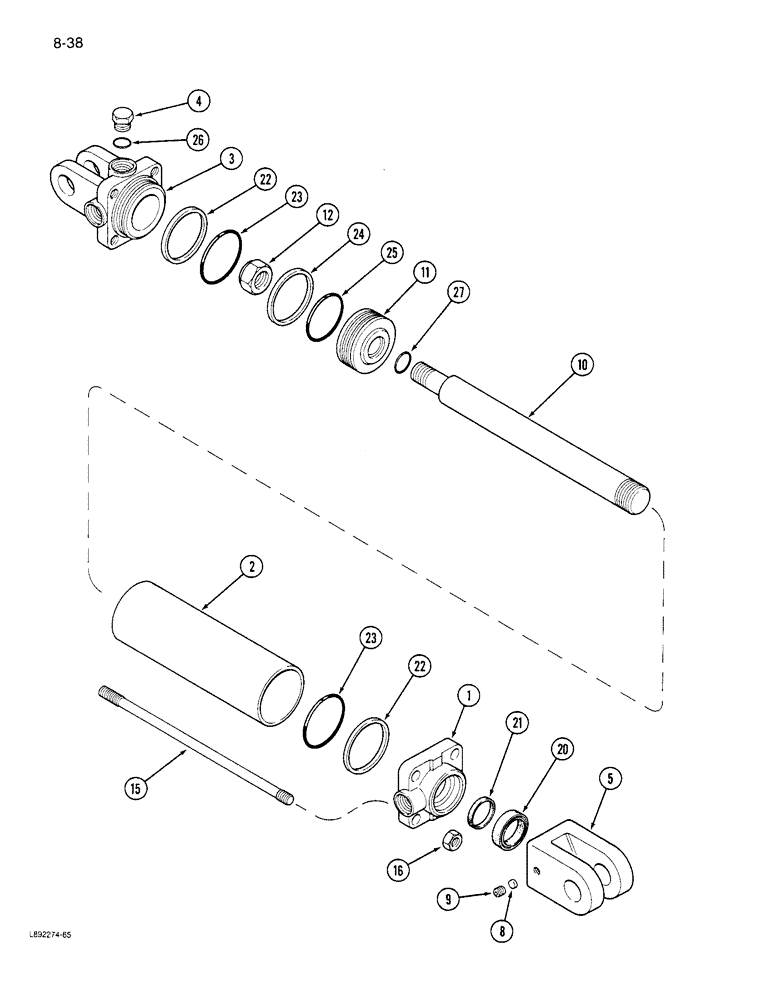

Запчасти Case IH 6300 (8-38) - HYDRAULIC CYLINDER, ENDWISE TRANSPORT, 1272402C91 (08) - HYDRAULICS

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic, 2-1/2 inch bore x 8 inch stroke

2шт.

1

1272767C1

CYLINDER END CAP

HEAD - front

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

3

1272766C1

HEAD

- rear

1шт.

4

9410359

PLUG

- hex, 3/4-16 inch O-ring boss

1шт.

5

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

8

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - clevis

1шт.

9

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - hex socket, 3/8 NC x 3/8 inch

1шт.

10

145231C1

PISTON ROD

ROD - piston

1шт.

11

145221C3

PISTON

- cylinder

1шт.

12

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

15

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

STUD - tie, cylinder

4шт.

16

129-104

NUT,7/16"-14, G5

4шт.

79975C2

SEAL KIT

KIT - seal

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 ID x 1/8 inch

2шт.

24

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - 2-1/16 ID x 3/32 inch

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.
