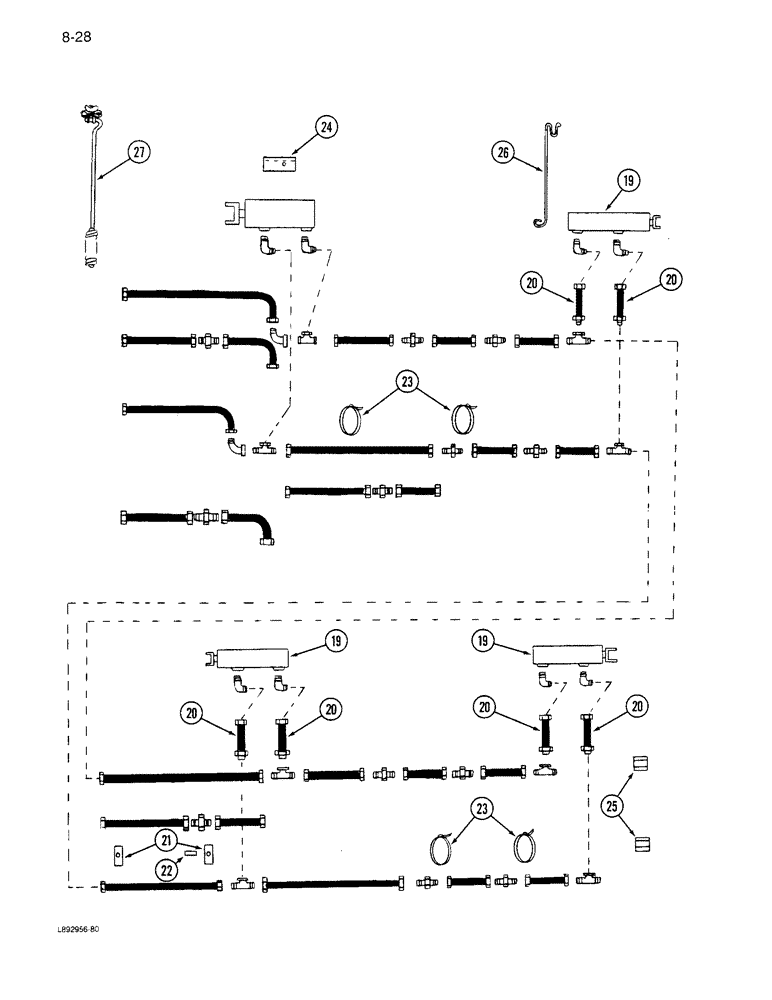

Запчасти Case IH 6300 (8-28) - HYDRAULIC SYSTEM, ENDWISE TRANSPORT (08) - HYDRAULICS

19

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic (SEE PAGE 8-39)

1шт.

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

495-81078

WASHER,1 1/32" x 2" x .179"

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

20

819872C1

TUBE,0.5" OD, 5" Length

- cylinder elbow (Leading drill)

2шт.

20

819872C1

TUBE,0.5" OD, 5" Length

- cylinder elbow (Second, third or fourth drill)

4шт.

21

379045R1

CLAMP

- hose (Second, third or fourth drill)

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

22

22055R1

SPACER,1/4" Pipe x .594"

- clamp (Second, third or fourth drill)

2шт.

23

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie (Three per drill)

1шт.

24

819825C2

CHANNEL

- hydraulic lockout

2шт.

21992R1

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

2шт.

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair, cotter

2шт.

25

218-755

CAP,37 Degree, 3/4"-16

(Second, third or fourth drill) 37º, 3/4"-16

2шт.

26

651793R2

SUPPORT

ROD - hose support (Leading drill)

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

27

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 8-45)

1шт.
