Запчасти Case IH 6300 (8-24) - HYDRAULIC LIFT SYSTEM, FOUR DRILL (08) - HYDRAULICS

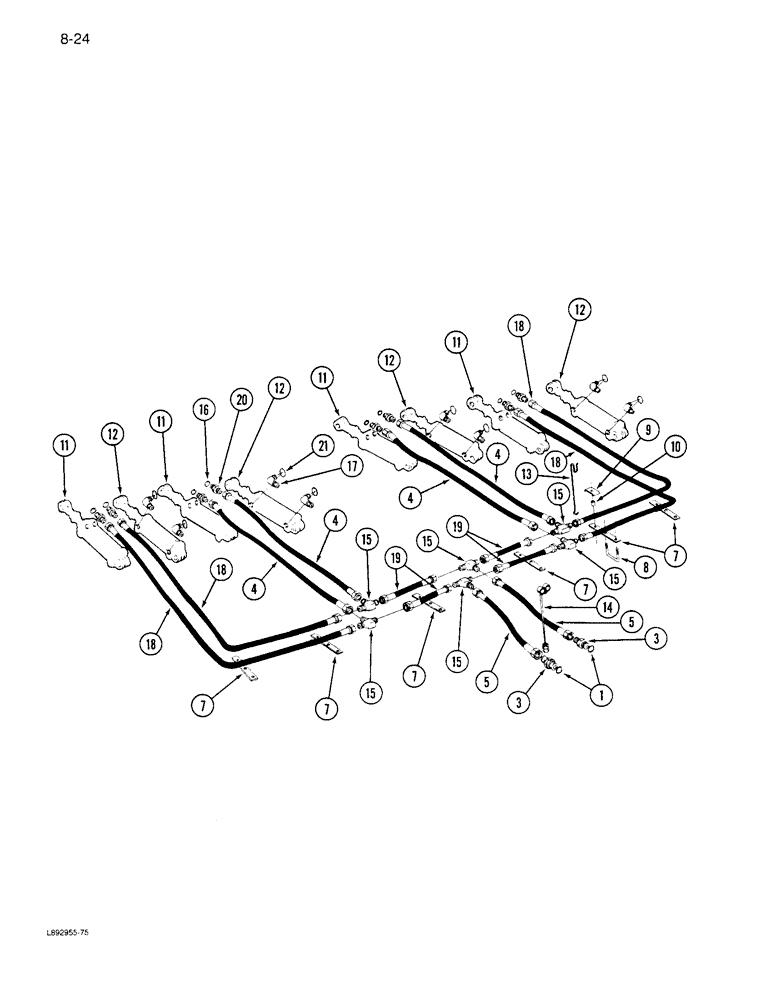

Схема запчастей Case IH 6300 - (8-24) - HYDRAULIC LIFT SYSTEM, FOUR DRILL (08) - HYDRAULICS
11
16
7
18
3
15
4
18
15
10
7
4
12
5
12
12
15
11
9
7
19
15
15
1
21
7
17
6
4
14
3
5
13
20
18
11
11
12
15
16
7
19
4

Артикул

Название

Примечание

Количество

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, short reducer, 1/2 tube x 5/8 tube 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

4

813006C2

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 85 inch

4шт.

5

1284369C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 130 inch

2шт.

7

819854C1

BAR

- hose support

6шт.

8

811627C1

BOLT

U-BOLT - hose support

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

9

379045R1

CLAMP

- hose

6шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

6шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

10

618631R1

SPACER

- hose clamp

6шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 8-31)

4шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - headed, 1 x 3-1/4 inch

4шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

4шт.

520175R1

CLIP

PIN - hair

8шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

8шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker lift (See Page 8-33)

4шт.

13

651793R2

SUPPORT

ROD - hose support

1шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

425-1010

NUT,5/8"-11, G5

1шт.

14

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 8-45)

1шт.

15

218-593

TEE,9/16"-18, 37 Degree

- 3/4-16 inch flared

6шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Use with 145353C91 cylinder

8шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Use with 1272145C91 cylinder

8шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring (Use with 1272145C91 cylinder)

8шт.

18

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

Assy 9.52 mm ID x 4955.00 mm

4шт.

18

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

HOSE ASSEMBLY - hydraulic, 3/8 x 210 inch (20x6)

4шт.

18

1284314C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 235 inch (24x6, 20x7)

4шт.

18

139522C2

HOSE

ASSEMBLY - hydraulic, 3/8 x 255 inch (28x6, 24x7)

4шт.

19

1254574C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 60 inch (16x6)

8шт.

19

1254574C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 60 (20x6)

4шт.

19

813006C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 85 (20x7, 24x7, 24x6, 28x6)

8шт.

20

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss (Use with 145353C91 cylinder)

8шт.
