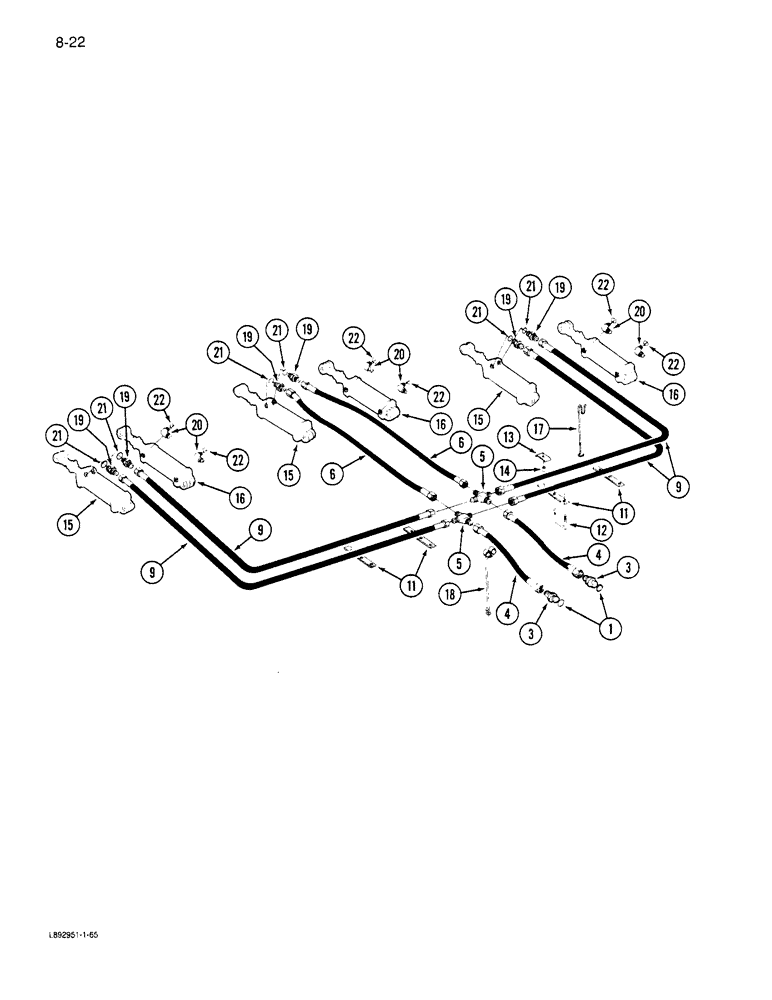

Запчасти Case IH 6300 (8-22) - HYDRAULIC LIFT SYSTEM, THREE DRILL, 20 X 7 AND 24 X 7 (08) - HYDRAULICS

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.

4

129671C2

HYDRAULIC HOSE

HOSE - 3/8 x 105 inch

2шт.

5

9403176

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS- 3/8 inch hyd flared

2шт.

6

813006C2

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 85 inch

2шт.

9

1284314C1

HYDRAULIC HOSE

HOSE ASSEMBLY - 3/8 ID x 235 inch (20x7)

4шт.

9

139522C2

HOSE

ASSEMBLY - 3/8 ID x 255 inch (24x7)

4шт.

11

819854C1

BAR

- hose support

4шт.

12

811627C1

BOLT

U-BOLT - hose support

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

13

379045R1

CLAMP

- hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

14

618631R1

SPACER

- hose clamp

4шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 8-31)

3шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - headed, 1 x 3-1/4 inch

3шт.

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

3шт.

520175R1

CLIP

PIN - hair

6шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

16

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 8-33)

3шт.

17

651793R2

SUPPORT

ROD - hose support

3шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x 3/32 inch

6шт.

425-1010

NUT,5/8"-11, G5

3шт.

18

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 8-45)

1шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss (Use with 145353C91 cylinder)

6шт.

20

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring (Use with 1272145C91 cylinder)

6шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Use with 145353C91 cylinder

6шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Use with 1272145C91 cylinder

6шт.
