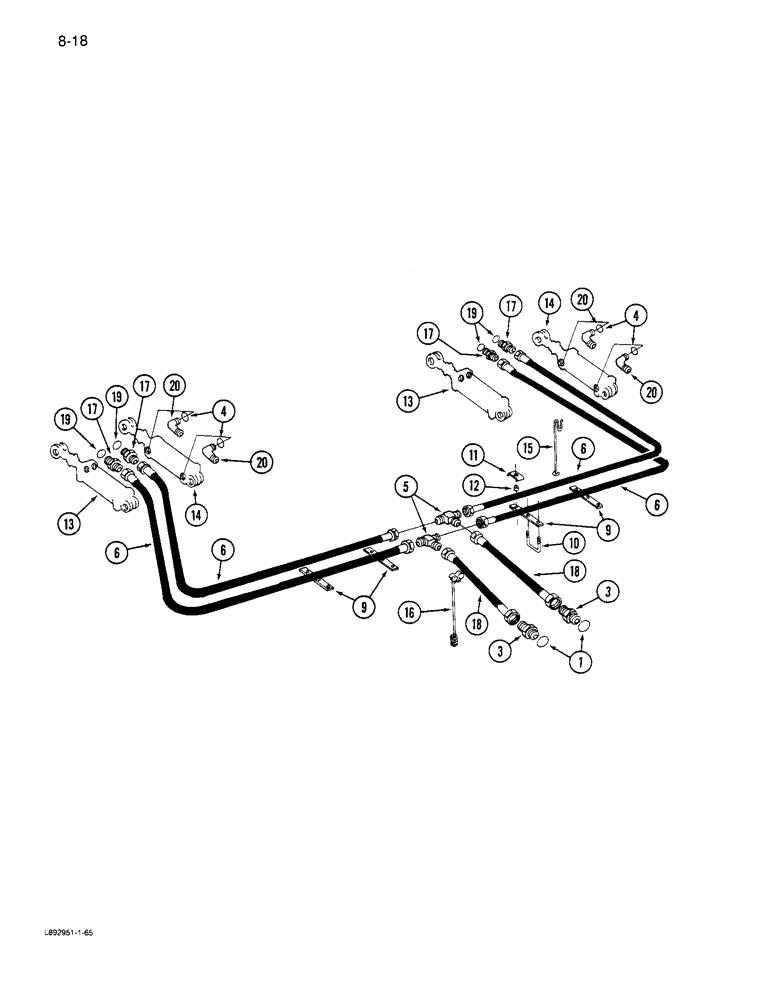

Запчасти Case IH 6300 (8-18) - HYDRAULIC LIFT SYSTEM, TWO DRILL (08) - HYDRAULICS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

12шт.

3

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Use with 1272145C91 cylinder

4шт.

5

218-593

TEE,9/16"-18, 37 Degree

- 3/8 inch tube

2шт.

6

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - hydraulic (20x6, 24x6, 28x6, 20x7, 24x7)

4шт.

6

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

9.52 mm ID x 3810.00 mm

4шт.

9

819854C1

BAR

- hose support

4шт.

10

811627C1

BOLT

U-BOLT - hose support

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

11

379045R1

CLAMP

- hose

4шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

12

618631R1

SPACER

- hose clamp

4шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 8-31)

2шт.

61571C1

PIN

- headed, 1 x 3-1/4 inch

4шт.

520175R1

CLIP

PIN - hair

4шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch

4шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 8-33)

2шт.

15

651793R2

SUPPORT

ROD - hose support (1 per machine)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

425-1010

NUT,5/8"-11, G5

1шт.

16

REF

INSTRUCTION

SUPPORT - hydraulic hose (See Page 8-45)

1шт.

17

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 deg adj, 9/16-18 flared x 3/4-16 inch O-ring (Use with 1272145C1 cylinder)

4шт.

17

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss (Use with 145353C91 cylinder)

4шт.

18

129671C2

HYDRAULIC HOSE

HOSE - 3/8 x 105 inch

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Use with 145353C91

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2 inch tube 3/4-16 thread (Use with 1272145C91 cylinder) cylinder)

4шт.
