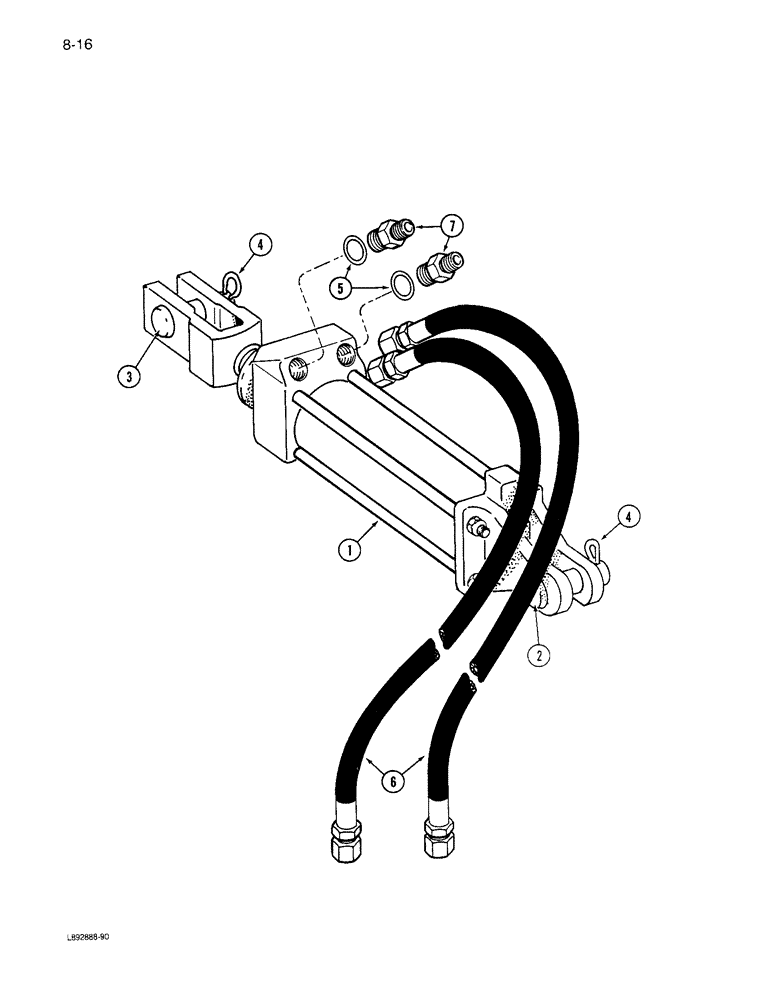

Запчасти Case IH 6300 (8-16) - HYDRAULIC LIFT SYSTEM, SINGLE DRILL (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 8-31)

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

1шт.

3

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

1шт.

4

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

139655C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 155 inch long

2шт.

7

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.
