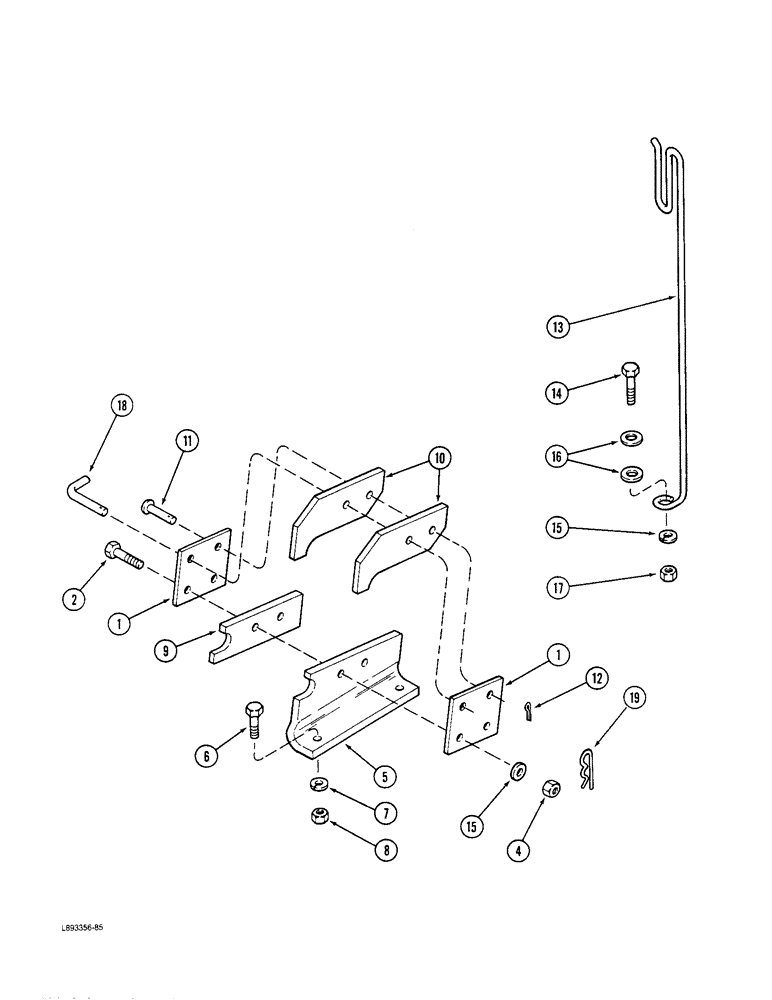

Запчасти Case IH 6300 (8-14) - HYDRAULIC CYLINDER MOUNTING PARTS (08) - HYDRAULICS

1

819262C2

LEDGER PLATE

PLATE - mounting bracket tie

2шт.

2

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

819247C1

BRACKET

- cylinder mounting

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

819248C1

BAR

- cylinder mounting

1шт.

10

819383C1

RETAINER

- cylinder

2шт.

11

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

1шт.

12

432-1216

COTTER PIN,3/16" x 1"

1шт.

13

651793R2

SUPPORT

ROD - hose support

1шт.

14

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

2шт.

17

425-1010

NUT,5/8"-11, G5

1шт.

18

600829R2

ROD

- cylinder lock

1шт.

19

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

1шт.
