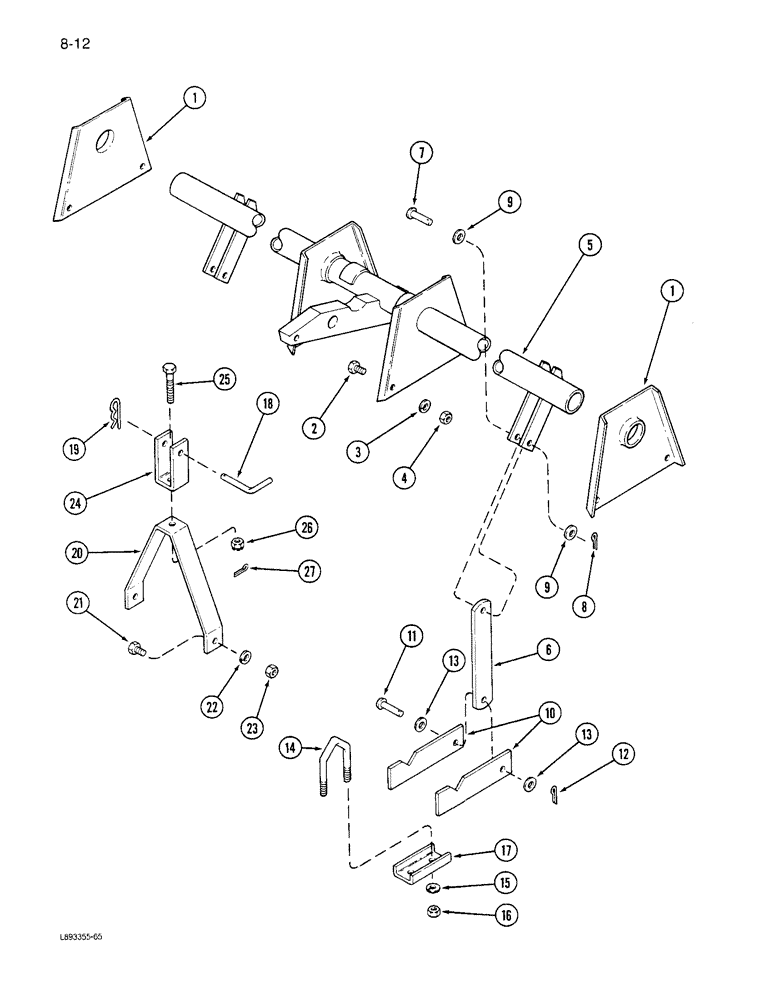

Запчасти Case IH 6300 (8-12) - HYDRAULIC LIFT, WITH REMOTE CONTROL HYDRAULICS, 20 X 6, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7 (08) - HYDRAULICS

1

816381C1

BRACKET

- hydraulic cylinder rockshaft

2шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

5

816383C3

ROCKSHAFT

- hydraulic lift (20x6)

1шт.

5

819074C1

SHAFT

ROCKSHAFT - hydraulic lift (24x6, 28x6, 20x7)

1шт.

5

819069C1

SHAFT

ROCKSHAFT - hydraulic lift (24x7)

1шт.

6

816391C1

BAR

- rockshaft connecting

2шт.

7

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

2шт.

8

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

9

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

10

816392C1

ARM

- rockshaft lift

4шт.

11

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

2шт.

12

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

13

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

14

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - lift arm clamp

2шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

425-1010

NUT,5/8"-11, G5

4шт.

17

603393R1

CHANNEL

- lift arm clamp

2шт.

18

600829R2

ROD

- cylinder lock

1шт.

19

520175R1

CLIP

PIN - hair

1шт.

20

816394C1

YOKE

- hydraulic lift lock

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

17585R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

27

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.
