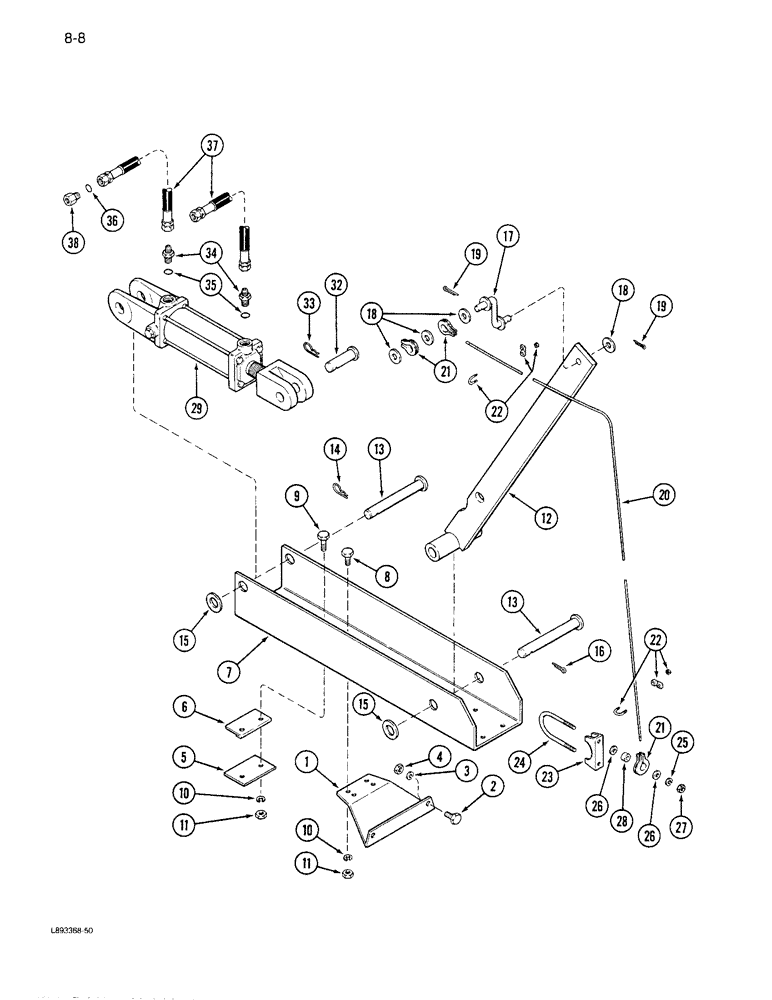

Запчасти Case IH 6300 (8-08) - MARKER HYDRAULICS, CABLE CONTROLLED MARKER (08) - HYDRAULICS

1

819050C1

SUPPORT

- cylinder channel

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

819042C1

BAR

- cylinder channel spacer

1шт.

6

819081C1

SUPPORT

- cylinder channel spacer

1шт.

7

819051C1

CHANNEL

- cylinder

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

425-106

NUT,3/8"-16, Cl 5

4шт.

12

819049C1

ARM

- cable crank

1шт.

13

651029R1

HEADED PIN,1" x 6 5/8"

PIN - headed, 1 x 6-5/8 inch

2шт.

14

471194R1

AXLE PIN

PIN - hair

2шт.

15

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32"

2шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

819969C1

ROD

- cable crank

1шт.

18

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

4шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

819052C2

CABLE

- 25 foot marker lift

1шт.

20

819053C1

CABLE

- 18 foot marker lift

1шт.

21

819054C1

EYE

THIMBLE - cable, 3/16 inch

4шт.

22

819055C1

CLAMP

- cable, 3/16 inch

8шт.

23

549902C91

CLAMP

SADDLE - marker tube clamp

2шт.

24

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - marker disc tube

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

8шт.

27

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

4шт.

28

86224H

SPACER,1/4" Pipe x 3/8"

4шт.

29

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker lift (See Page 8-31 or 8-33)

1шт.

32

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

1шт.

33

520175R1

CLIP

PIN - hair

1шт.

34

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

HOSE ASSEMBLY - hydraulic, 3/8 x 230 inch

2шт.

38

484723R1

LOCK VALVE

VALVE ASSEMBLY - restrictor

1шт.
