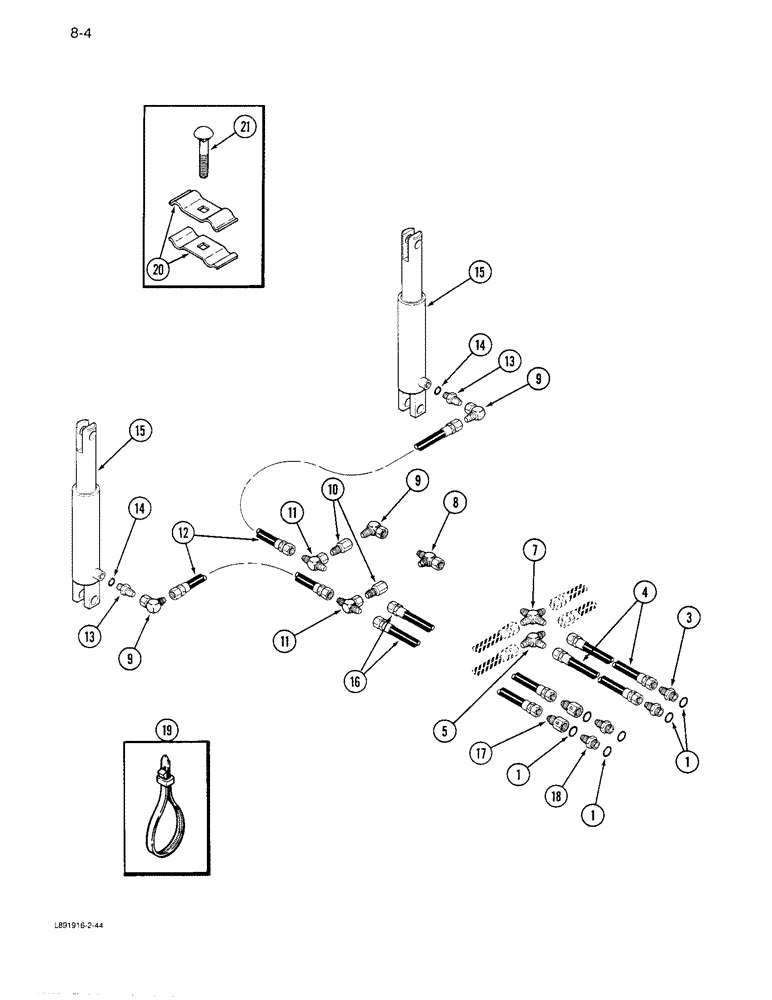

Запчасти Case IH 6300 (8-04) - MARKER HYDRAULICS, HYDRAULIC SELECTOR, LEFT AND RIGHT MARKERS (08) - HYDRAULICS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

4

819992C1

HOSE

ASSEMBLY - hydraulic, 3/8 x 128 inch

2шт.

5

9402982

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

1шт.

7

9403177

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 flared

1шт.

8

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adj, 3/4-16 inch flare x female straight thread

1шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch flared

3шт.

10

842773C1

RESTRICTOR

CHECK VALVE - hydraulic

2шт.

11

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, 3/4-16 inch flared

2шт.

12

1279597C1

HOSE

- hydraulic, 3/8 x 210 inch

2шт.

13

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4 thread x 9/16 inch thread

2шт.

15

REF

INSTRUCTION

CYLINDER - marker lift (See Page 8-35 or 8-37)

2шт.

16

1279721C1

HYDRAULIC HOSE,12.70 mm ID x 3251.00 mm

12.70 mm ID x 3251.00 mm

2шт.

17

1279860C91

RESTRICTOR

VALVE ASSEMBLY - restrictor

2шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

19

813579C1

CABLE TIE

STRAP - tie

8шт.

20

515030R1

CLAMP

- hose

2шт.

21

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - round head square neck, 3/8 x 2-1/4 inch

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
