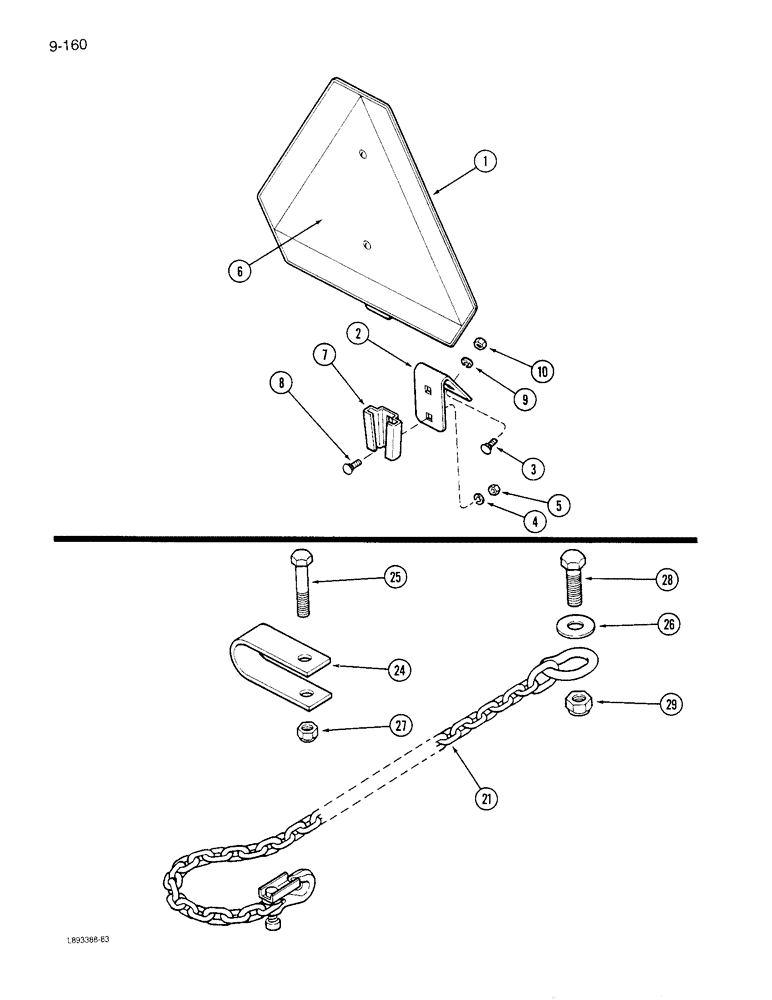

Запчасти Case IH 6300 (9-160) - SMV EMBLEM (09) - CHASSIS/ATTACHMENTS

1

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

2

819998C1

SUPPORT

- slow moving vehicle emblem

1шт.

3

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

REF

INSTRUCTION

DECAL - SMV emblem (See Page 9-165)

1шт.

7

398976R1

BRACKET

- SMV mounting

1шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

21

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety

1шт.

61913C92

PACKAGE

KIT - clevis and hardware , safety chain

1шт.

24

148558C1

CLEVIS

- safety chain

1шт.

25

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Safety chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

26

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 11/64 inch, safety chain

1шт.

27

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Safety chain 5/8"-11, GB

1шт.

28

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 x 2-3/4 inch, safety chain

1шт.

29

22244R1

LOCK NUT

- hex lock, 3/4 inch NC, safety chain

1шт.
