Запчасти Case IH 6300 (9-158) - DEPTH BAND (09) - CHASSIS/ATTACHMENTS

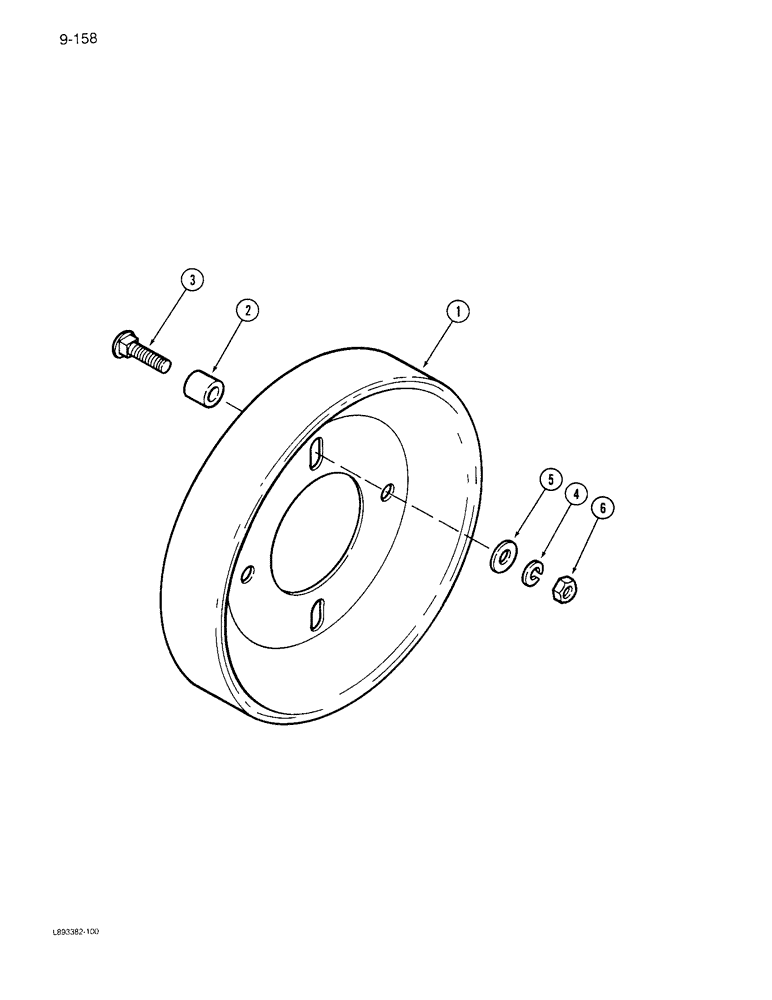

Схема запчастей Case IH 6300 - (9-158) - DEPTH BAND (09) - CHASSIS/ATTACHMENTS
3
5
1
6
4
2

Артикул

Название

Примечание

Количество

1

524671R1

DRUM

BAND - 8-3/4 inch diameter depth (For 2-3/4 inch penetration)

1шт.

1

493540R2

DRUM

BAND - 10-1/2 inch diameter depth (For 1-3/4 inch penetration)

1шт.

1

542555R2

DRUM

BAND - 11 inch diameter depth (For 1-1/2 inch penetration)

1шт.

1

461915R1

DRUM

BAND - 11-3/8 inch diameter depth (For 1-1/4 inch penetration)

1шт.

1

524670R1

DRUM

BAND - 9-7/8 inch diameter depth (For 2 inch penetration)

1шт.

2

525820R1

SPACER,3/8" Pipe x .469"

- depth band

2шт.

3

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 1/16 inch

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

Выбрано товаров: 10
