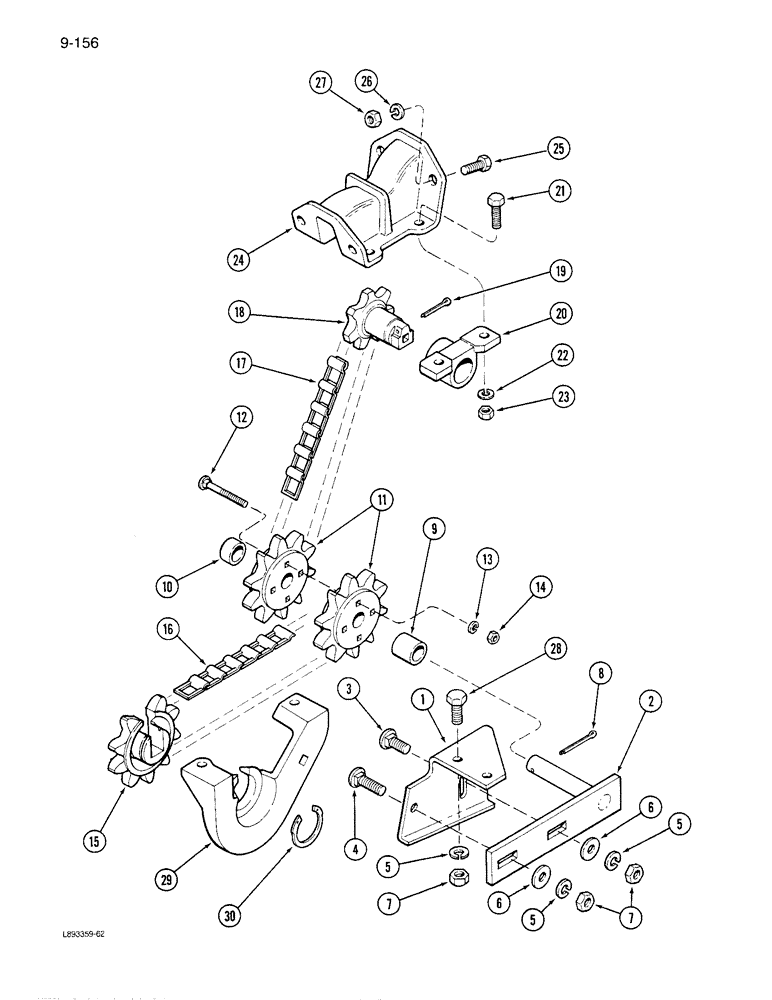

Запчасти Case IH 6300 (9-156) - GRASS SEED ATTACHMENT, SEED DRIVE (09) - CHASSIS/ATTACHMENTS

1

815638C1

BRACKET

SUPPORT - chain tightener bracket

1шт.

2

816340C2

BRACKET

- drive chain tightener

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

4

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

9

PO15237

SPACER

- tightener sprocket inner

1шт.

10

590750R1

SPACER

- tightener sprocket outer

1шт.

11

819949C1

DRIVE SPROCKET

SPROCKET - chain tightener

2шт.

12

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

BOLT - round head square neck, 1/4 NC x 2 inch

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

15

1978907C1

DRIVE SPROCKET

SPROCKET - grass seed drive, 10 tooth

1шт.

16

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (See Note A)

1шт.

17

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - driven (See Note B)

1шт.

18

NA1475

DRIVE SPROCKET

SPROCKET - grass feed driven, 7 tooth

1шт.

19

432-1216

COTTER PIN,3/16" x 1"

1шт.

20

816533C1

BRACKET

BEARING - driven sprocket

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

816532C1

GUARD

- drive chain

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

29

1978908C1

HANGER

- sprocket

1шт.

30

28793R1

SNAP RING,1.312", Int, #131

Ring, Snap, 1.312", Int, #131

1шт.
