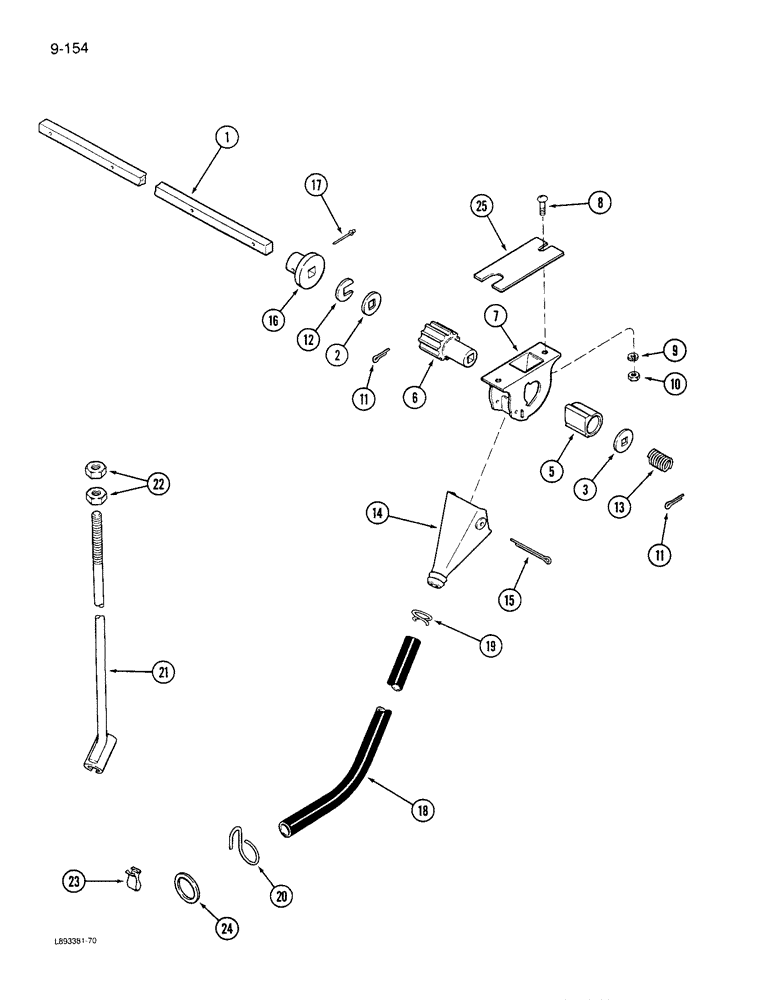

Запчасти Case IH 6300 (9-154) - GRASS SEED FEED (09) - CHASSIS/ATTACHMENTS

1

816332C1

BAR

- feed shaft (16x6)

1шт.

1

816920C1

BAR

- feed shaft (28x6)

2шт.

1

815622C1

DRIVE SHAFT

BAR - feed shaft (20x6)

2шт.

1

815623C1

DRIVE SHAFT

BAR - feed shaft (24x6)

2шт.

1

816334C1

BAR

- feed shaft (20x7)

2шт.

1

816335C2

BAR

- feed shaft (24x7)

2шт.

2

498-81000

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

- square hole, 11/32 x 3/4 x 1/64 inch

1шт.

3

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch (1 per feed)

1шт.

600924R92

CUP ASSY.

CUP ASSEMBLY - grass seed

1шт.

5

600923R2

BLOCK

COLLAR - feed cup cutoff

1шт.

6

601463R1

FINGER ASSY.

SHAFT - feed roll

1шт.

7

615750R92

SUPPORT ASSY.

CUP - feed

1шт.

8

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), (2 per cup) 1/8" x 3/4"

1шт.

12

N32109

WASHER

- slotted, 11/32 x 3/4 x 1/64 inch

1шт.

13

N32176

SPRING

- feed

1шт.

14

603817R3

TUBE

HOUSING - seed feeder tube (1 per feed cup)

1шт.

15

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

16

819227C1

SLEEVE

- feed shifter (1 per grass drive)

1шт.

17

104056

RIVET

- 1/8 x 7/8 inch

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - feeder, 54 inch (See Note)

1шт.

19

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP - seed tube

1шт.

20

603882R1

HOOK

- seed tube end

1шт.

21

605088R11

HOLDER

- seed tube

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

819193C1

SPRING CLIP

CLAMP - tube U

1шт.

24

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 29/32 x 1-1/4 x 1/64 inch

1шт.

25

818183C1

PROTECTIVE COVER

BRACKET - feed cover

1шт.
