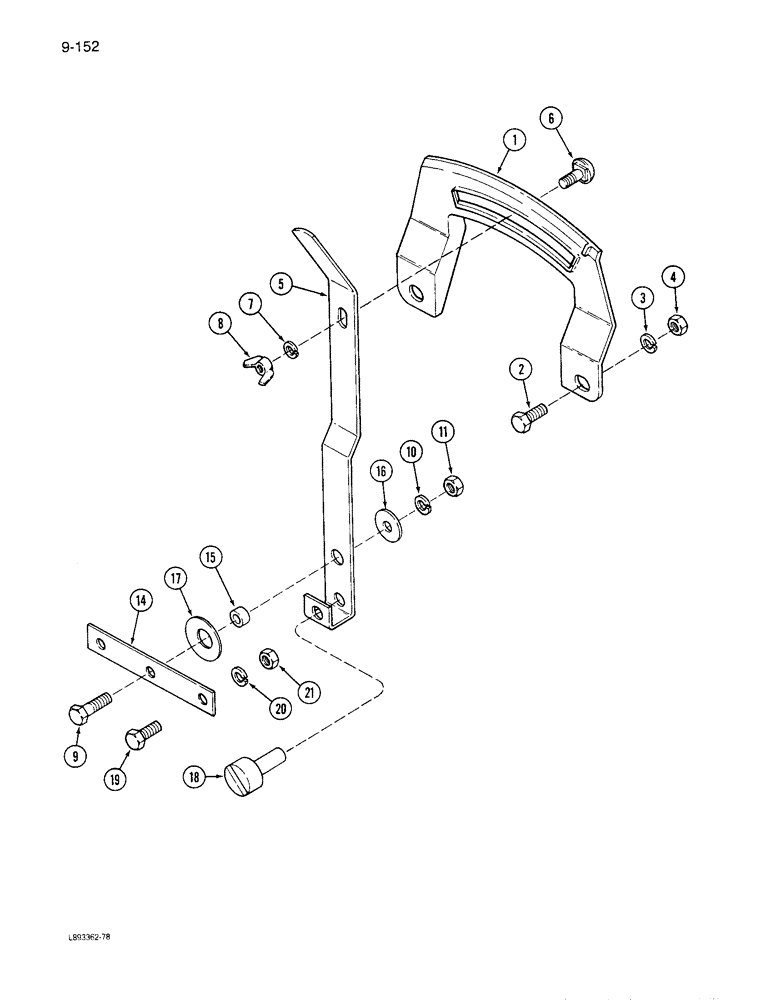

Запчасти Case IH 6300 (9-152) - GRASS SEED ATTACHMENT, FEED INDICATOR (09) - CHASSIS/ATTACHMENTS

1

815627C1

INDICATOR

- grass seed feed

2шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

815628C2

CONTROL LEVER

LEVER - shifter

2шт.

6

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

142745

NUT, WING

NUT - wing, 5/16 inch NC

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

14

815629C1

BAR

BRACE - reinforcing

2шт.

15

95944C1

BUSHING

SPACER - lever pivot

2шт.

16

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

17

151401C1

BELLEVILLE WASHER

WASHER - special

2шт.

18

815630C1

PIN,25.4mm OD x 42.16mm L

- feed shifter

2шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.
