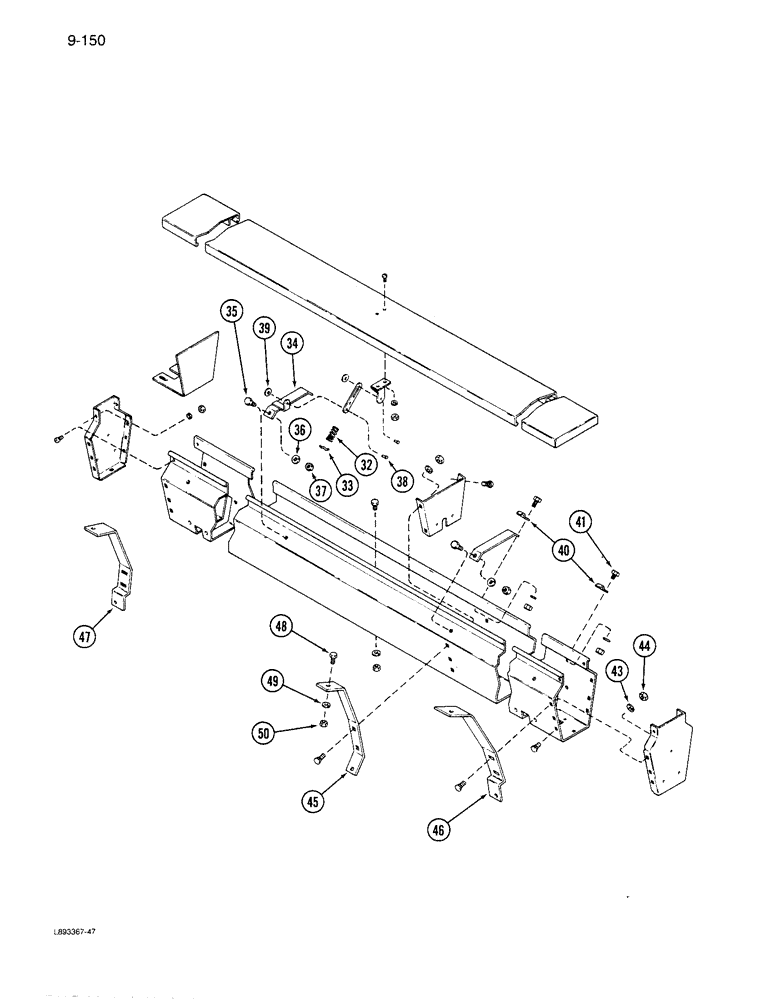

Запчасти Case IH 6300 (9-150) - GRASS SEED ATTACHMENT, HOPPER (09) - CHASSIS/ATTACHMENTS

32

6628

SPRING

- cover

1шт.

33

N32114

LINCH PIN

LOCK - spring

1шт.

34

815616C1

BRACKET

- cover

1шт.

35

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

38

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

39

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

40

815618C1

CLAMP

- cover hinge (5 used 16x6)

1шт.

40

815618C1

CLAMP

- cover hinge (7 used 20x6, 24x6, 28x6, 20x7, 24x7)

1шт.

41

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

45

816339C1

BRACE

- hopper support, intermediate (2 used 16x6, 20x6, 24x6, 20x7)

1шт.

45

816339C1

BRACE

- hopper support, intermediate (4 used 24x7, 28x6)

1шт.

46

818267C1

SUPPORT

BRACE - hopper support end, left

1шт.

47

818268C1

SUPPORT

BRACE - hopper support end, right

1шт.

48

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

49

492-11038

LOCK WASHER,3/8"

1шт.

50

425-106

NUT,3/8"-16, Cl 5

1шт.
