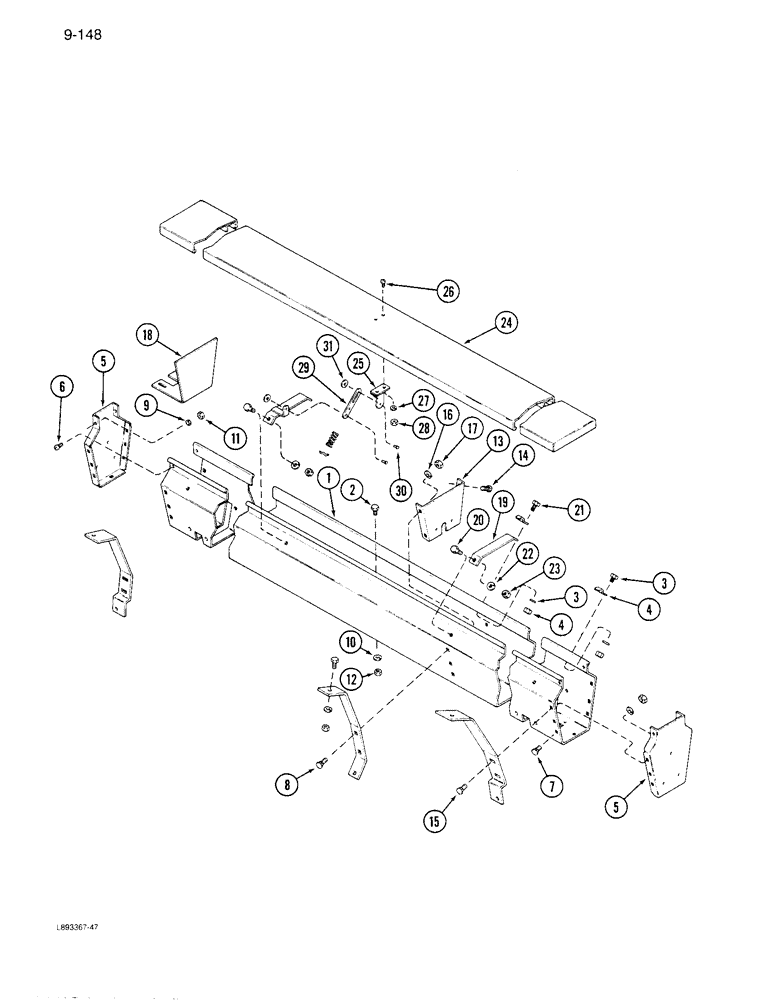

Запчасти Case IH 6300 (9-148) - GRASS SEED ATTACHMENT, HOPPER, CONTINUED (09) - CHASSIS/ATTACHMENTS

1

816855C2

HOPPER

- grass seed (16x6)

1шт.

1

816780C2

HOPPER

- grass seed (20x6)

1шт.

1

816781C2

HOPPER

- grass seed (24x6)

1шт.

1

816913C2

HOPPER

- grass seed (28x6)

1шт.

1

816857C2

HOPPER

- grass seed (20x7)

1шт.

1

816858C2

HOPPER

- grass seed (24x7)

1шт.

2

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

5

819060C2

PANEL, SIDE

PANEL - hopper end

2шт.

6

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

4шт.

7

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

13

815597C1

PLATE

BAFFLE - hopper (16x6, 20x6, 24x6, 20x7)

2шт.

13

815597C1

PLATE

BAFFLE - hopper (28x6, 24x7)

4шт.

14

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

1шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

18

815598C1

BAFFLE

- grass seed (4 used 16x6; 5 used 20x6; 7 used 24x6, 28x6, 20x7, 24x7)

1шт.

19

815599C1

BRACKET

BRACE - hopper (16x6)

2шт.

19

815599C1

BRACKET

BRACE - hopper (20x6, 24x6, 28x6, 20x7, 24x7)

4шт.

20

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

24

816860C1

COVER

- hopper (16x6)

1шт.

24

816778C1

COVER

- hopper (20x6)

1шт.

24

816779C1

COVER

- hopper (24x6, 20x7)

1шт.

24

816861C1

COVER

- hopper (24x7, 28x6)

1шт.

25

815615C1

SUPPORT

BRACKET - cover spring

1шт.

26

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

BOLT - pan head, 1/4 NC x 1/2 inch

2шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

29

N32052

BAR

BRACKET - cover spring

1шт.

30

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

31

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

1шт.
