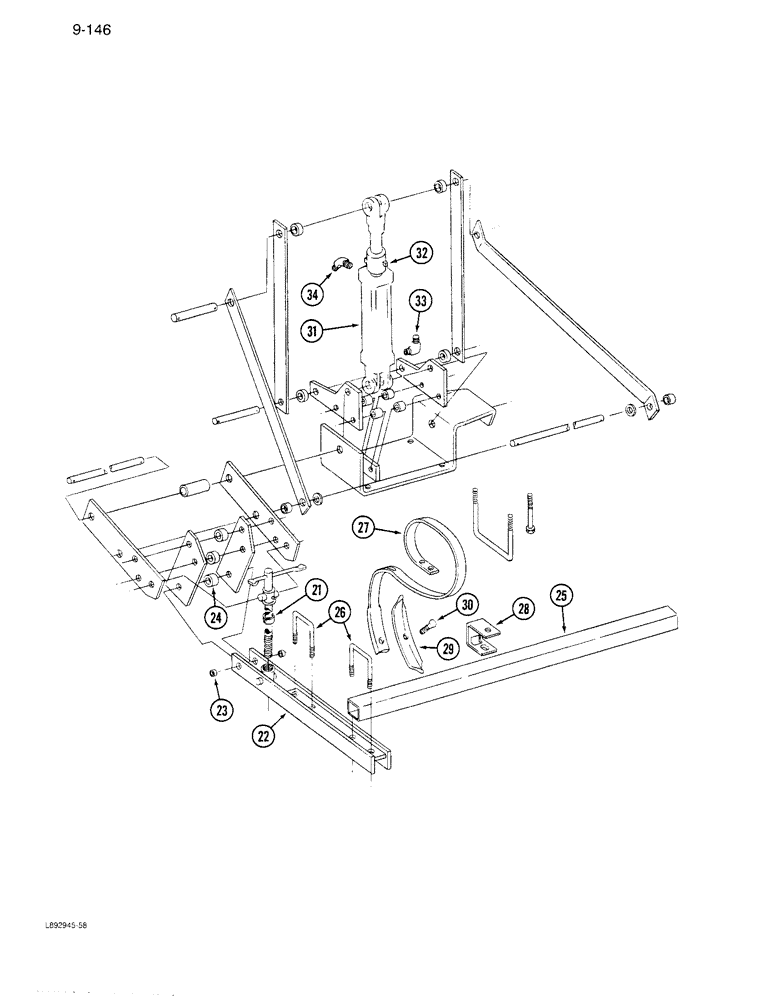

Запчасти Case IH 6300 (9-146) - TRACK ERASER (09) - CHASSIS/ATTACHMENTS

21

590303R1

COLLAR CLAMP

COLLAR - levelling screw

4шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch

4шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

22

817721C1

SUPPORT

- tine tube

4шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

23

817747C1

SPACER

- tine support pivot

8шт.

24

817749C1

SPACER

- cylinder support

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

8шт.

425-1010

NUT,5/8"-11, G5

4шт.

25

817746C1

TUBE

SUPPORT - tine

4шт.

26

817754C1

BOLT,U, 1/2" - 13 x 90 mm

U-BOLT - tine support

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

27

734553R2

TINE

SHANK - tine

12шт.

27

734553R2

TINE

SHANK - tine

16шт.

28

100275C1

CLAMP

- shank

1шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

29

811191C1

POINT

- 1-3/8 inch reversible chisel

1шт.

30

138544C1

PLOW BOLT,3/8" - 16 x 1.58" Cl 5B

BOLT - tool mounting

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

31

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic (See Page 8-39)

2шт.

32

145254C1

COLLAR ASSY.

COLLAR - cylinder stroke control

2шт.

33

817762C1

ELBOW

- flow restrictor

2шт.

34

310254C1

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, 3/4-16 flared x 1/2 inch pt

2шт.
