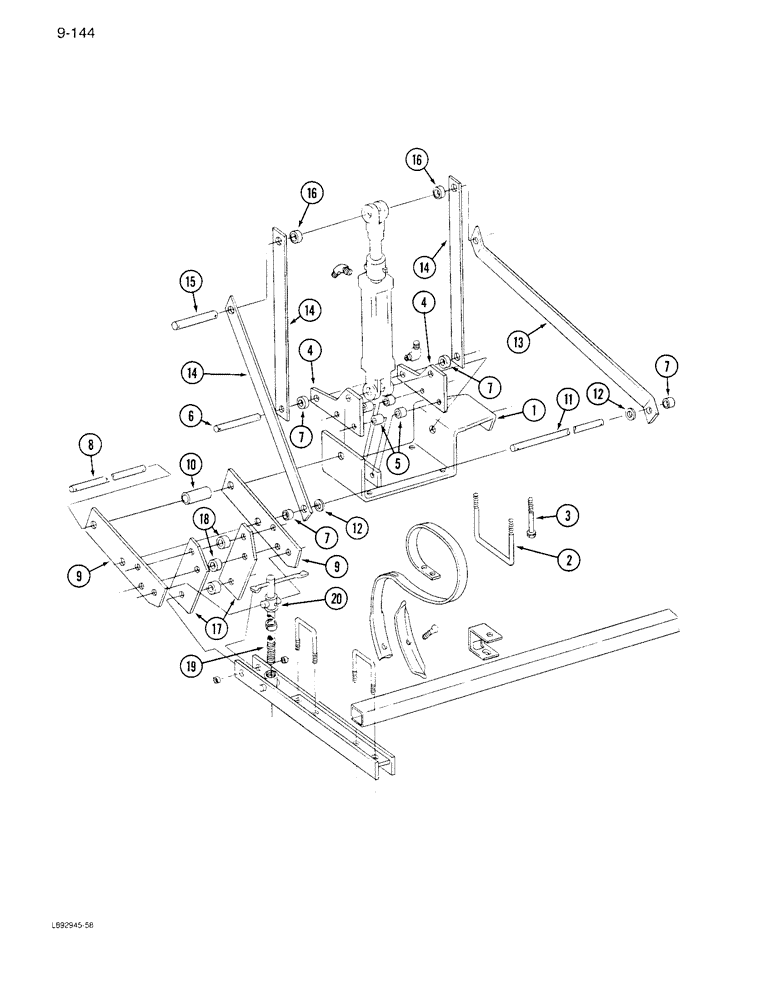

Запчасти Case IH 6300 (9-144) - TRACK ERASER, CONTINUED (09) - CHASSIS/ATTACHMENTS

1

817723C1

SUPPORT

- cylinder anchor

2шт.

2

817740C1

U-BOLT

- cylinder anchor support

4шт.

3

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

4

817726C1

SUPPORT

- cylinder

4шт.

5

817749C1

SPACER

- cylinder support

8шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

6

817753C1

PIN

- cylinder support lower

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

7

817734C1

SPACER

- cylinder mast

8шт.

8

817736C1

ROD

- cylinder anchor

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32"

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

9

817737C1

BAR

- levelling adjustment

8шт.

10

817755C1

SPACER

- bar

4шт.

11

817725C1

ROD

- support

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

12

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32"

4шт.

13

817751C1

SUPPORT

- cylinder mast

2шт.

14

817745C1

BAR

- cylinder mast

6шт.

15

817735C1

PIN

- cylinder support upper

2шт.

19479R1

PIN,1/4" x 2", Coiled

4шт.

16

817752C1

SPACER

- cylinder mast

4шт.

17

817722C1

BAR

PLATE - tine pivot bolt

8шт.

18

817749C1

SPACER

- cylinder support

8шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

425-1010

NUT,5/8"-11, G5

8шт.

19

591620R11

SCREW

- tine levelling

4шт.

20

SA1658

ADJUSTMENT SCREW

TRUNNION - levelling screw

4шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 inch

4шт.
