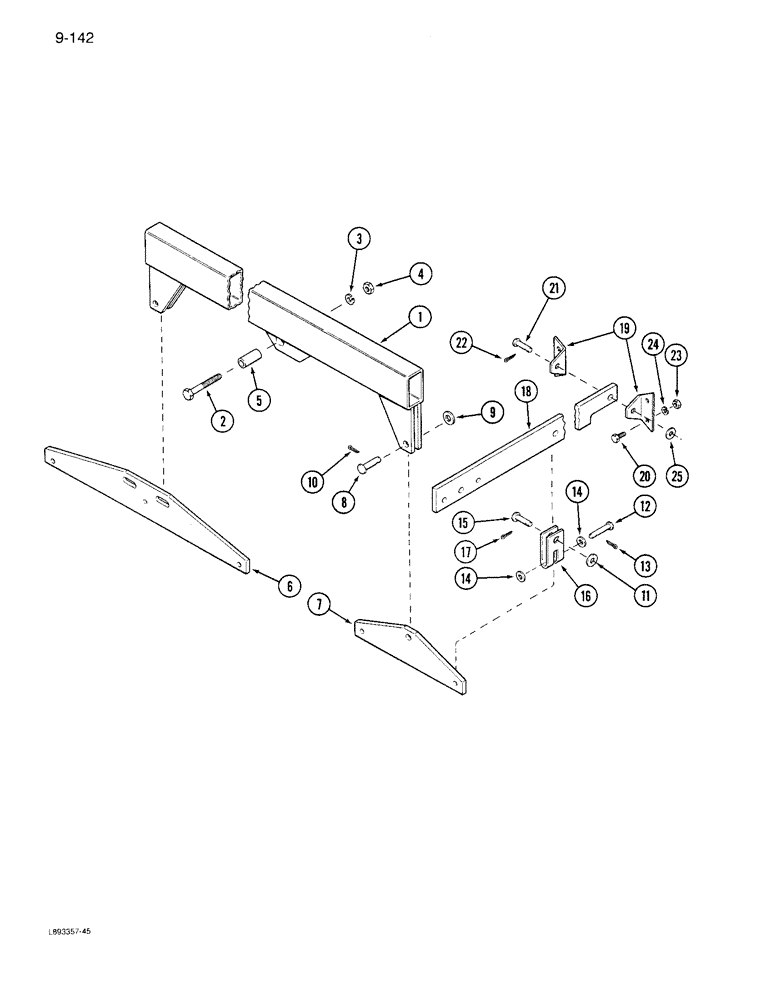

Запчасти Case IH 6300 (9-142) - REAR SUSPENSION PRESS WHEEL GANG, 20 X 6, 24 X 6, 28 X 6, 20 X 7 AND 24 X 7 (09) - CHASSIS/ATTACHMENTS

1

816163C1

TUBE

SUPPORT - equalizer (20x6)

2шт.

1

816164C1

TUBE

SUPPORT - equalizer (24x6)

2шт.

1

816165C1

TUBE

SUPPORT - equalizer (20x7)

2шт.

1

816166C1

TUBE

SUPPORT - equalizer (28x6, 24x7)

2шт.

2

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

3

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

5

111892H

SPACER,3/4" Pipe x 2 1/8"

- equalizer support pivot

2шт.

6

816177C1

BAR

- center evener (20x6)

1шт.

6

816178C1

BAR

- center evener (24x6)

1шт.

6

816179C1

BAR

- center evener (20x7)

1шт.

6

816180C1

BAR

- center evener (24x7)

1шт.

6

816898C1

BAR

- center evener (28x6)

1шт.

7

816181C1

BAR

- outer evener (20x6)

2шт.

7

816182C1

BAR

- outer evener (24x6)

2шт.

7

816183C1

BAR

- outer evener (20x7)

2шт.

7

816184C1

BAR

- outer evener (24x7)

2шт.

7

816899C1

BAR

- outer evener (28x6)

2шт.

8

540851R1

HEADED PIN,1/2" x 1 7/8", G5

PIN - headed, 3/4 x 1-7/8 inch

4шт.

9

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

4шт.

10

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

11

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

6шт.

12

21899R1

HEADED PIN

PIN - headed, 1/2 x 2-1/2 inch

6шт.

13

432-1216

COTTER PIN,3/16" x 1"

6шт.

14

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

12шт.

15

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

6шт.

16

819143C1

CLEVIS

- drawbar

6шт.

17

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

6шт.

18

819142C1

BAR

DRAWBAR - press wheel

6шт.

19

819141C1

ANGLE

- gang drawbar support

12шт.

20

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

21

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch (20x6, 24x6, 28x6, 20x7)

6шт.

22

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

6шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24шт.

25

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

6шт.
