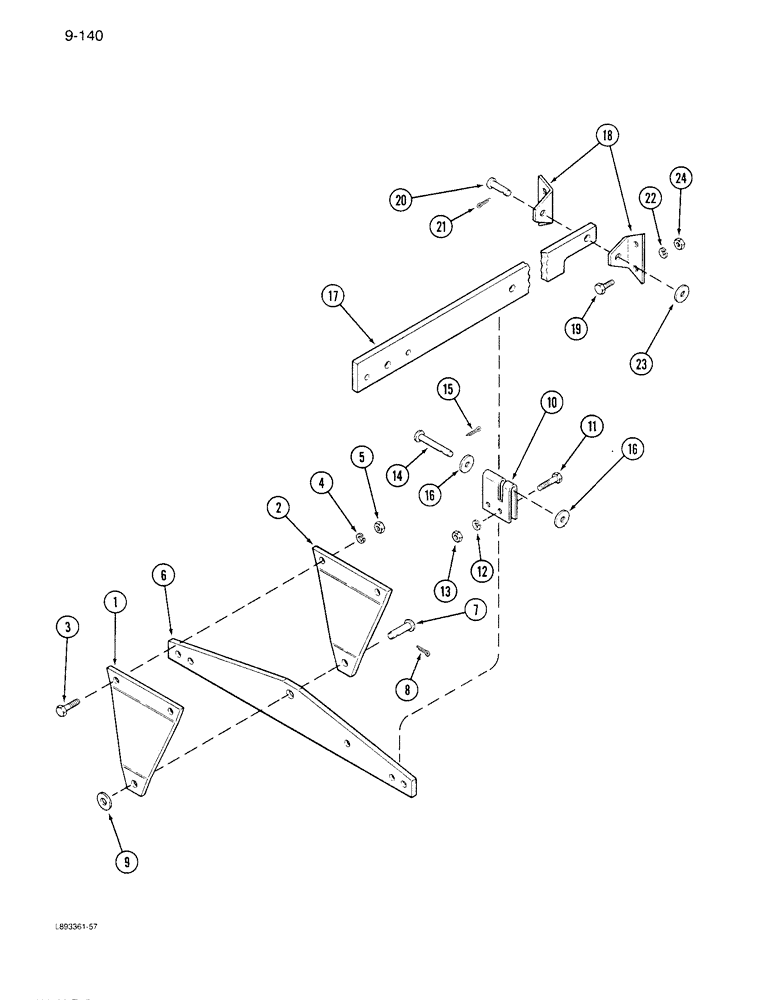

Запчасти Case IH 6300 (9-140) - REAR SUSPENSION PRESS WHEEL GANG, 16 X 6 (09) - CHASSIS/ATTACHMENTS

1

816173C1

SUPPORT

- evener bar inner

2шт.

2

816174C1

SUPPORT

- evener bar outer

2шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

816176C1

BAR

- evener

2шт.

7

PO28401

HEADED PIN,3/4" x 2 1/16"

PIN - headed, 3/4 x 2-1/16 inch

2шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

9

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

10

816616C1

CLEVIS

- drawbar

4шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

14

23273R1

PIN

- headed, 5/8 x 3-1/2 inch

4шт.

15

432-1216

COTTER PIN,3/16" x 1"

4шт.

16

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

17

819225C1

BAR

DRAWBAR - press wheel

4шт.

18

819141C1

ANGLE

- gang drawbar support

8шт.

19

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

20

21957R1

HEADED PIN,5/8" x 2"

PIN - headed, 5/8 x 2 inch

4шт.

21

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

23

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.
