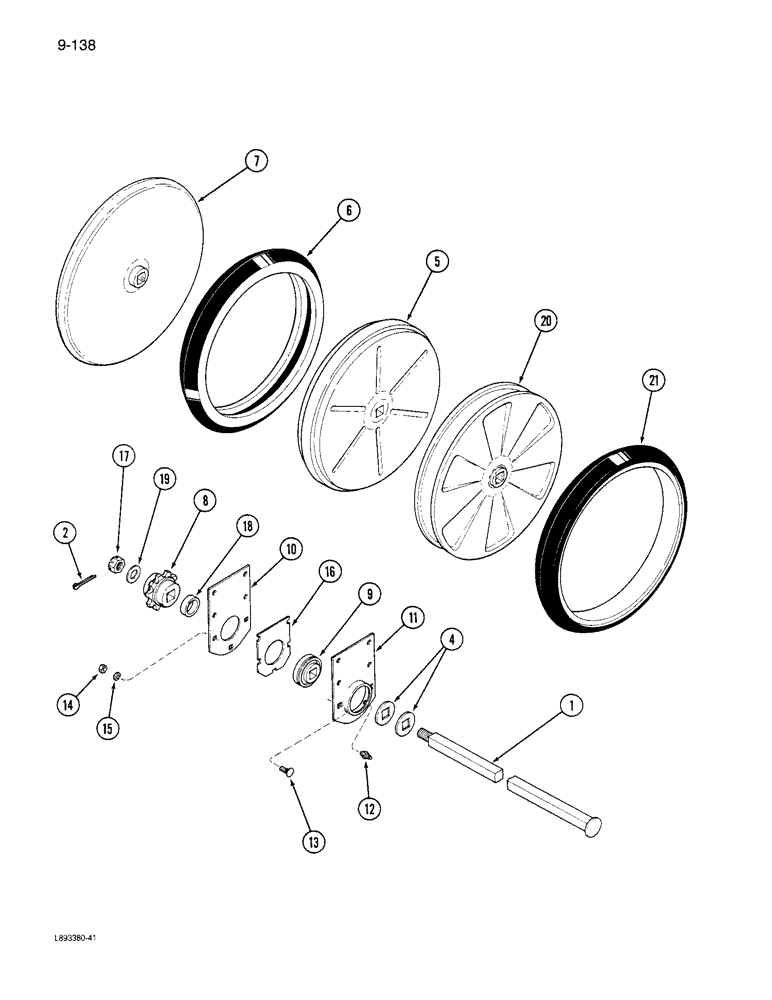

Запчасти Case IH 6300 (9-138) - GANG PRESS WHEEL (09) - CHASSIS/ATTACHMENTS

1

816147C3

SPECIAL BOLT,1" - 8 x 48.1"

BOLT - gang arbor, left and right (16x6)

2шт.

1

816148C3

BOLT,Wheel, 1" - 8 x 36 1/2"

- gang arbor, left and right (20x6)

2шт.

1

816149C3

BOLT,1" - 8 x 49.4"

- gang arbor, center (20x6)

1шт.

1

816150C3

BOLT,Wheel, 1" - 8 x 47.3"

- gang arbor left, right and center (24x6)

3шт.

1

816151C3

BOLT,Wheel, 1" - 8 x 41 1/2"

- gang arbor, left and right (20x7)

2шт.

1

816152C3

BOLT,Wheel, 1" - 8 x 56.4"

- gang arbor, center (20x7)

1шт.

1

816153C3

BOLT,Wheel, 1" - 8 x 54.3"

- gang arbor left, right and center (24x7)

3шт.

1

816901C3

BOLT,Wheel, 1" - 8 x 53.4"

- gang arbor, left and right (28x6)

2шт.

1

816900C3

BOLT,Wheel, 1" - 8 x 59.6"

- gang arbor, center (28x6)

1шт.

2

432-1232

COTTER PIN,3/16" OD x 2" L

(1 per gang bolt) 3/16" x 2"

1шт.

4

1279012C1

SQ HOLE WASHER,32.5mm ID x 70mm OD x 3mm Thk

- press wheel spacer

1шт.

816188C92

PRESS

WHEEL ASSEMBLY - 3x20 shielded press

1шт.

5

816189C2

WHEEL,501.65mm OD x 82.55mm W

ASSEMBLY - 3x20 shielded press (1 per furrow opener, not with endwise transport)

1шт.

6

816195C2

TYRE/TIRE

TIRE - 3x20 press wheel oval

1шт.

7

605082R92

WHEEL

- 2-1/4x20 shielded round rim (1 per furrow opener)

1шт.

8

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

9

818112C91

BALL BEARING,33.02mm ID x 84.95mm OD x 36.51mm W

- press wheel gang (16x6)

4шт.

9

818112C91

BALL BEARING,33.02mm ID x 84.95mm OD x 36.51mm W

- press wheel (20x6, 24x6, 20x7, 24x7, 28x6)

6шт.

10

819896C1

RETAINER

- gang bearing (1 per bearing)

1шт.

11

819897C1

FLANGE

- gang bearing (1 per bearing)

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 PT x 17/32 inch (1 per bearing)

1шт.

13

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

819951C1

GASKET

- gang bearing

1шт.

17

425-1216

SLOTTED NUT,Hex, 1"-8, G5

(1 per gang bolt) Hex, 1"-8, G5

1шт.

18

843275C1

SPACER

- gang, 15/32 inch (24x7)

2шт.

18

843278C1

SPACER

- gang, 39/64 inch (20x7)

6шт.

18

843278C1

SPACER

- gang, 39/64 inch (16x6)

8шт.

18

843278C1

SPACER

- gang, 39/64 inch (20x6, 24x6, 28x6)

12шт.

18

843281C1

SPACER

- gang, 1-5/32 inch (24x7)

12шт.

18

843283C1

SPACER

- gang, 1-15/64 inch (20x7)

4шт.

18

843289C1

SPACER

- gang, 1-53/64 inch (20x7)

4шт.

18

843293C1

SPACER

- gang, 2-5/8 inch (24x6)

14шт.

18

843293C1

SPACER

- gang, 2-5/8 inch (28x6)

18шт.

18

843295C1

SPACER

- gang, 2-49/64 inch (16x6)

9шт.

18

843298C1

SPACER

- gang, 2-13/16 inch (20x6)

10шт.

18

843301C1

SPACER

- gang, 3-5/8 inch (24x7)

14шт.

18

843306C1

SPACER

- gang, 3-31/32 inch (20x7)

10шт.

19

25540R1

WASHER,1 1/16" x 2" x .134", HDN

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

20

843264C91

PRESS

WHEEL ASSEMBLY - 3x20 heavy duty (1 per furrow opener)

1шт.

21

843188C1

TYRE/TIRE

TIRE - zero pressure heavy duty

1шт.
