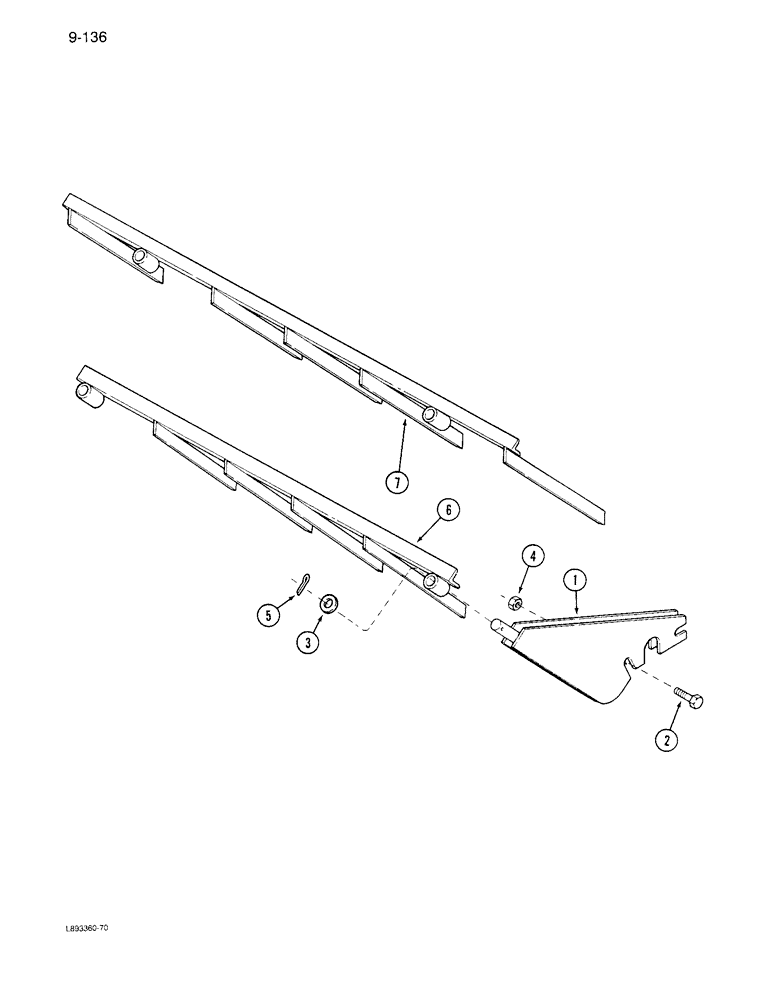

Запчасти Case IH 6300 (9-136) - STONE KICKER FRAME (09) - CHASSIS/ATTACHMENTS

1

816620C2

SUPPORT

- stone kicker frame (16x6)

4шт.

1

816620C2

SUPPORT

- stone kicker frame (20x6, 24x6, 28x6, 20x7, 24x7)

6шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(2 per support) Hex, 1/2"-13 x 1 3/4", G5

1шт.

3

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

4

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

1шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (1 per support)

1шт.

6

816624C2

FRAME

- stone kicker (16x6)

2шт.

6

816625C2

FRAME

- stone kicker (16x6)

2шт.

6

816625C2

FRAME

- stone kicker (24x6)

3шт.

6

816626C2

FRAME

- stone kicker (20x6)

2шт.

6

816631C2

FRAME

- stone kicker (24x7)

3шт.

6

816629C2

FRAME

- stone kicker outer (20x7)

2шт.

6

816915C2

FRAME

- stone kicker outer (28x6)

2шт.

7

816627C2

FRAME

- stone kicker center (20x6)

1шт.

7

816630C2

FRAME

- stone kicker center (20x7)

1шт.

7

816914C2

FRAME

- stone kicker center (28x6)

1шт.
