Запчасти Case IH 6300 (4-08) - ROW MARKER VALVE (04) - ELECTRICAL SYSTEMS

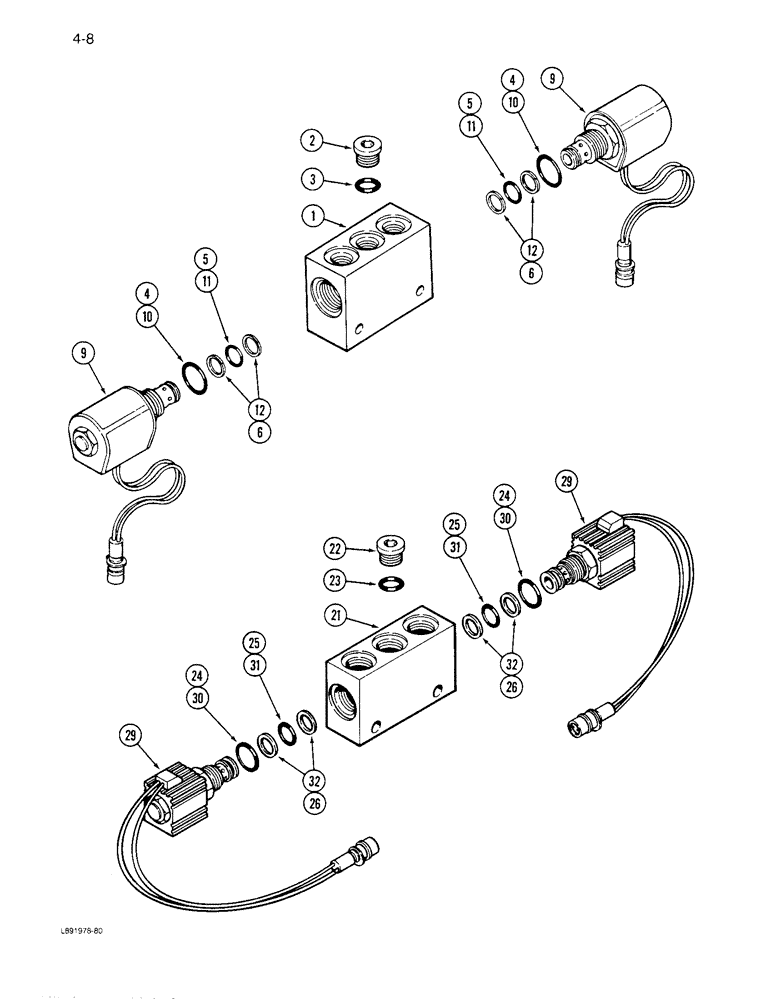

Схема запчастей Case IH 6300 - (4-08) - ROW MARKER VALVE (04) - ELECTRICAL SYSTEMS
30
24
30
10
12
6
5
26
3
29
1
24
22
32
10
9
26
4
12
21
11
29
4
5
9
6
2
31
32
31
11
25
23
25

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSEMBLY - row marker (Modular Controls) (Includes Ref 1 through 12)

1шт.

1

145317C2

VALVE BODY

BODY ASSEMBLY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - 9/16-18 inch O-ring boss

1шт.

145316C1

REPAIR KIT

KIT - seal, valve assembly

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

9

149989C91

VALVE

ASSEMBLY - solenoid

2шт.

1272308C1

SEAL KIT

KIT - seal, solenoid valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

1272632C91

VALVE

ASSEMBLY - row marker (Waterman) (Order 149988C92)

1шт.

21

1272827C1

VALVE BODY

BODY ASSEMBLY - valve

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

1272828C1

SEAL KIT

KIT - seal, valve assembly

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

29

1272830C91

SOLENOID VALVE

VALVE ASSEMBLY - solenoid (Order 149988C92)

2шт.

30

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve (Order 1272828C1)

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve (Order 1272828C1)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - backup (Order 1272828C1)

2шт.

Выбрано товаров: 25
