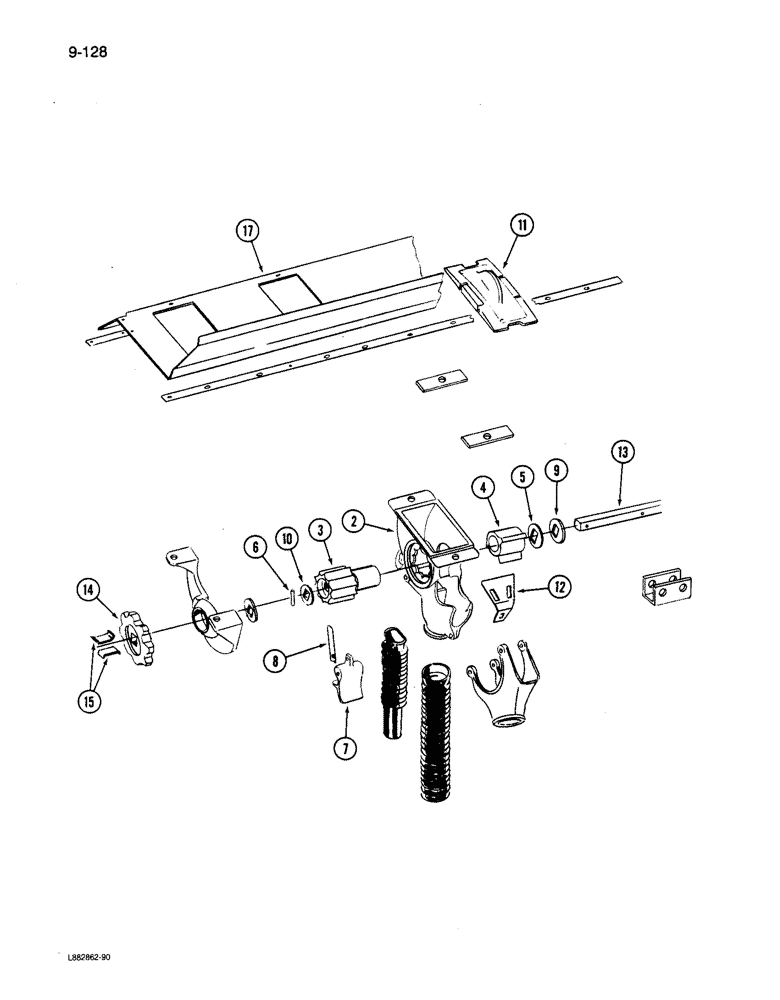

Запчасти Case IH 6200 (9-128) - GRAIN FEED (09) - CHASSIS/ATTACHMENTS

603816R93

CUP

Feed

1шт.

2

603295R92

CUP

ASSEMBLY - feed

1шт.

3

603111R1

ROLLER

SHAFT - fluted roll

1шт.

4

603112R1

BLOCK

Shut off

1шт.

5

602106R1

SQ HOLE WASHER

Square hole, 21/32 x 1-11/64 x 1/64 inch

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

Roll, feed cup

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

(2 per feed cup)

1шт.

80681

LOCK WASHER,5/16"

1шт.

619855R1

WASHER

Flat, 11/32 x 3/4 x 1/16 inch

1шт.

120376

NUT,5/16"-18, G5

(2 per feed cup)

1шт.

132-344

COTTER PIN,3/16" x 1"

1шт.

7

603108R21

BOTTOM

ASSEMBLY - feed cup dump (1 per feed cup)

1шт.

8

603178R1

LATCH

Dump bottom

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

17083R1

COTTER PIN,3/16" x 3"

(1 per bottom)

1шт.

9

N11720

WASHER

Square hole, 21/32 x 1-1/2 3/32 inch (1 per feed cup)

1шт.

10

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

Feed cup spring

1шт.

11

818335C1

COVER ASSY

Grain feed

1шт.

12

606034R1

GUARD

PLATE - grain feed

1шт.

13

816123C2

BAR

Feed shaft (14x6)

1шт.

13

816124C2

BAR

Feed shaft (16x6)

1шт.

13

816125C2

BAR

Feed shaft left (20x6)

1шт.

13

816126C2

BAR

Feed shaft right (20x6)

1шт.

13

816127C3

BAR

Feed shaft left (24x6)

1шт.

13

816128C2

BAR

Feed shaft right (24x6)

1шт.

13

816896C2

BAR

Feed shaft left (28x6)

1шт.

13

816127C3

BAR

Feed shaft right (28x6)

1шт.

13

816129C2

BAR

Feed shaft left, (20x7)

1шт.

13

816130C2

BAR

Feed shaft right (20x7)

1шт.

13

816131C2

BAR

SPARE PART Feed shaft left (24x7)

1шт.

13

816132C2

BAR

Feed shaft right (24x7)

1шт.

13

819101C2

BAR

Feed shaft left (16x8)

1шт.

13

819102C2

BAR

Feed shaft right (16x8)

1шт.

132-344

COTTER PIN,3/16" x 1"

(1 per feed cup)

1шт.

14

815324C1

DRIVE SPROCKET

SPARE PART Grass seed drive (1 per drive)

1шт.

15

815803C1

CLIP

Sprocket retaining (2 per sprocket)

1шт.

17

818357C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (14x6)

1шт.

17

818358C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (16x6)

1шт.

17

818359C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (20x6)

1шт.

17

818360C1

CUTTER BAR

SPARE PART SECTION - grain bottom partition (24x6)

1шт.

17

818361C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (28x6)

1шт.

17

818363C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (20x7)

1шт.

17

818364C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (24x7)

1шт.

17

818365C1

ASSEMBLY

SPARE PART SECTION - grain bottom partition (16x8)

1шт.
