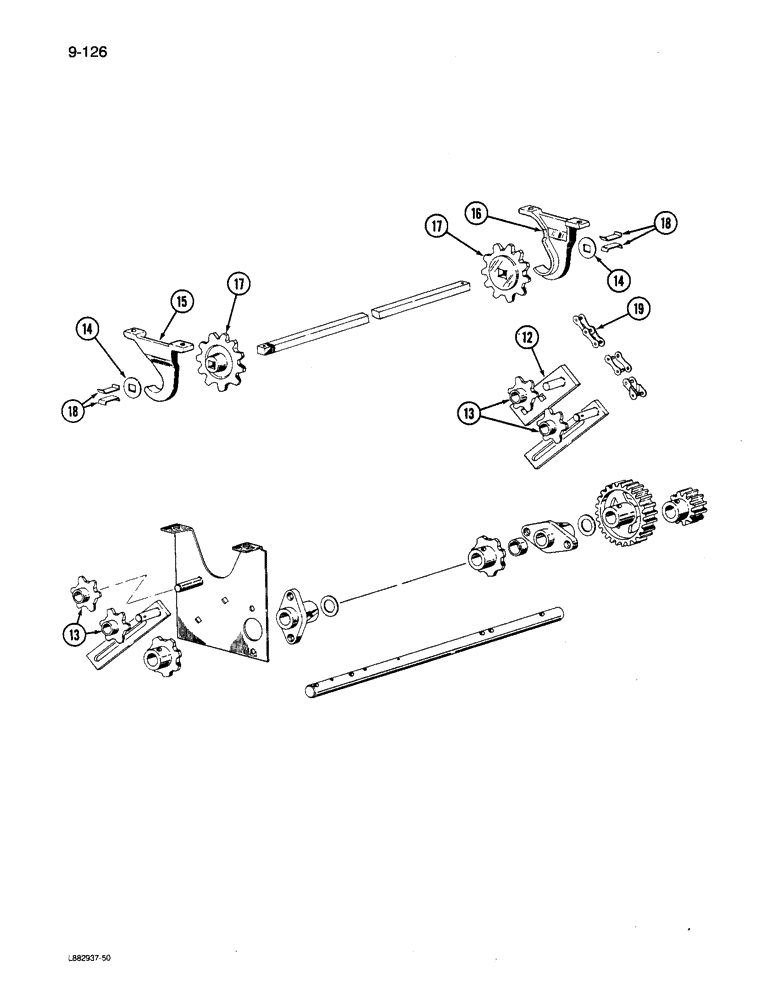

Запчасти Case IH 6200 (9-126) - FERTILIZER DRIVE, CONTD (09) - CHASSIS/ATTACHMENTS

12

816786C1

BRACKET

- fertilizer drive chain idler (Not used 16x8)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

819457C1

SPROCKET

- fertilizer drive tightener 6 tooth(14x6, 16x6)

2шт.

13

819457C1

SPROCKET

- fertilizer drive tightener 6 tooth (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

4шт.

14

569875R1

SQ HOLE WASHER

- square hole, 25/32 x 1-3/4 x 3/64 inch

1шт.

15

816277C1

HANGER

- fertilizer drive sprocket right (14x6, 16x6, 20x7, 24x7)

1шт.

15

816277C1

HANGER

- fertilizer drive sprocket right (20x6, 24x6, 28x6, 16x8)

2шт.

16

816276C1

HANGER

- fertilizer driven sprocket left (20x7, 24x7)

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

816278C1

SPROCKET ASSY.

SPROCKET - fertilizer driven 11 tooth (14x6, 16x6)

1шт.

17

816278C1

SPROCKET ASSY.

SPROCKET - fertilizer driven 11 tooth (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

2шт.

18

816279C1

CLIP

- sprocket retaining (2 per sprocket)

1шт.

19

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - fertilizer drive (Use 30 links from bulk chain 569089R91, 1 offset link 456929R1 and 2 connecting links 587372R91)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot (3m) roll

1шт.

587372R91

CONNECTING LINK

LINK - chain, connecting

1шт.

456929R91

CHAIN LINK

LINK - chain, offset

1шт.
