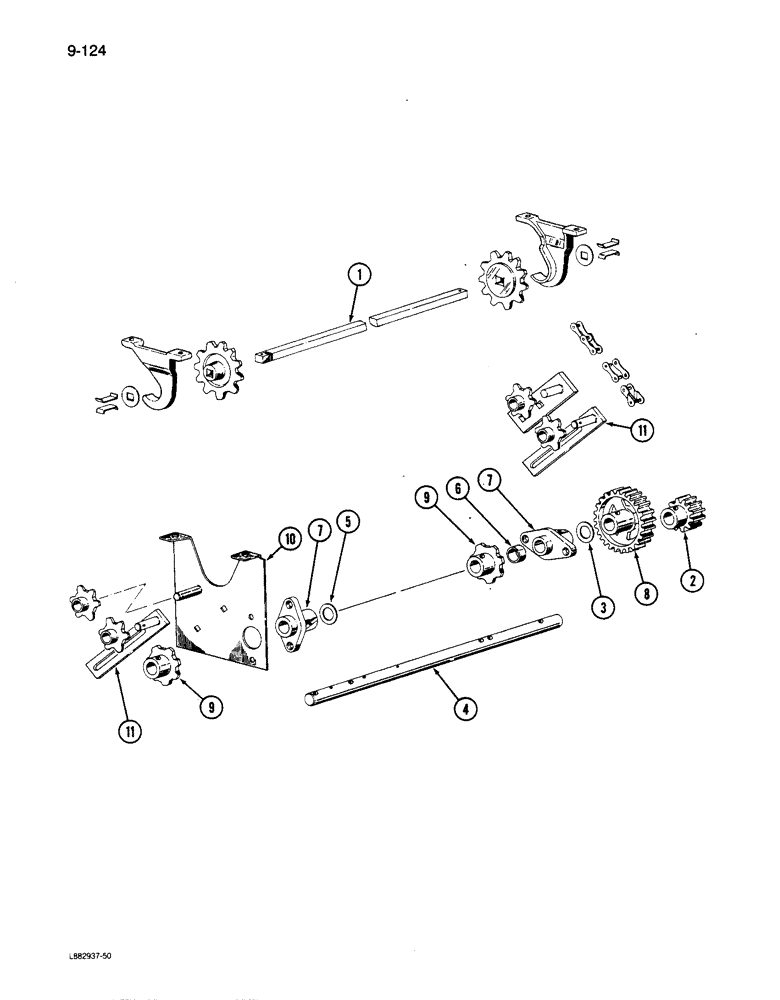

Запчасти Case IH 6200 (9-124) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BAR - fertilizer feed shaft (See Page 9-133)

1шт.

2

816268C1

GEAR

- fertilizer drive 12 tooth

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

Q850

PIN

- headed, 3/8 x 1-7/8 inch

1шт.

3

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

4

816269C2

SHAFT

ROD - fertilizer drive (14x6, 16x6)

1шт.

4

816270C2

SHAFT

ROD - fertilizer drive (24x6, 28x6 and 20x7)

1шт.

4

819090C2

SHAFT

ROD - fertilizer drive (16x8)

1шт.

4

816271C2

SHAFT

ROD - fertilizer drive (20x6 and 24x7)

1шт.

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

5

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/32 inch (1 used 20x6, 24x6, 24x7, and 28x6; 2 used 16x8; 3 used 20x7)

1шт.

6

M73125

SPACER,1" Pipe x 3/8"

- sprocket (14x6, 16x6, 20x7

1шт.

6

M73125

SPACER,1" Pipe x 3/8"

- sprocket (20x6, 24x6, 24x7, 28x6, 16x8)

2шт.

7

603121R1

HUB CAP

BEARING - fertilizer drive shaft (14x6, 16x6, 20x6, 24x6, 20x7, 24x7, 28x6)

2шт.

7

603121R1

HUB CAP

BEARING - fertilizer drive shaft (16x8)

3шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, (16x8) 65º, 1/8" NPT x 7/8" lg

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

816272C1

GEAR

- fertilizer drive shaft 24 tooth

1шт.

24709R1

HEADED PIN,3/8" x 1 3/4"

PIN, HEADED, 3/8" x 1 3/4"

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

816793C1

SPROCKET ASSY.

SPROCKET - fertilizer drive 7 tooth (14x6, 16x6)

1шт.

9

816793C1

SPROCKET ASSY.

SPROCKET - fertilizer drive 7 tooth (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

2шт.

103774

PIN,3/8" x 1 5/8"

- straight, 3/8 x 1-5/8 inch

1шт.

10

816274C2

SUPPORT

- fertilizer drive (20x6, 24x6, 20x7, 24x7, 28x6)

1шт.

10

816274C2

SUPPORT

- fertilizer drive (16x8)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(20x6, 24x6, 20x7, 28x6, 24x7, 16x8) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch (2 per support)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

21843R1

WASHER

- flat, 13/32 x 1 x 13/64 inch

1шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

11

816040C2

BRACKET

- fertilizer drive chain tightener (14x6, 16x6)

1шт.

11

816040C2

BRACKET

- fertilizer drive chain tightener (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch (2 per bracket)

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), (20x6, 24x6, 20x7, 24x7, 28x6) 1/8" x 2"

1шт.
