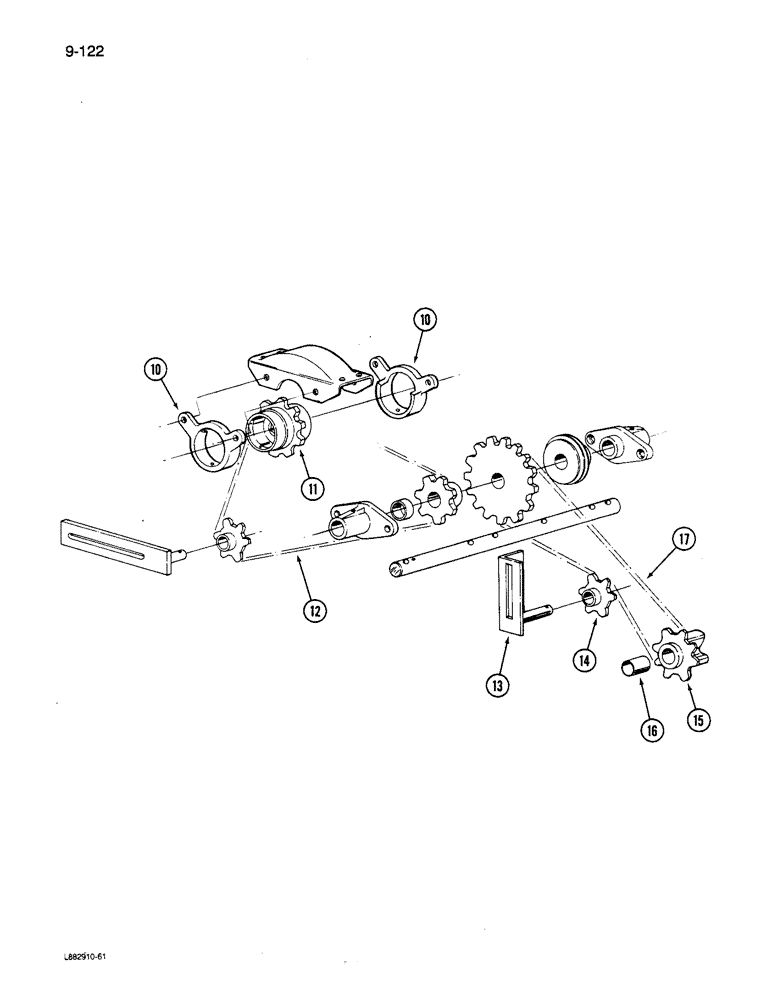

Запчасти Case IH 6200 (9-122) - GRAIN DRIVE, CONTD (09) - CHASSIS/ATTACHMENTS

10

817458C1

HANGER

- grain feedshaft drive sprocket

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

11

817457C1

SPROCKET

- grain feedshaft drive 9 tooth

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain feedshaft drive (Regular and fast speed) (Use 23 links from bulk chain 56989R91, 1 offset link 456929R91, and 1 connnecting link 587372R91)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain feedshaft drive (Slow speed) (Use 23 links from bulk chain 569089R91, 5 offset link 456929R91, and 1 connecting link 587372R91)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot (3m) roll

1шт.

456929R91

CHAIN LINK

LINK - chain, offset

1шт.

587372R91

CONNECTING LINK

LINK - chain, connecting

1шт.

13

816036C1

BRACKET

- grain countershaft drive idler

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

819457C1

SPROCKET

- grian countershaft drive idler 6 tooth

1шт.

15

816033C11

DRIVE SPROCKET

SPROCKET ASSEMBLY - grain drive clutch

1шт.

16

289587R1

BUSHING

- clutch sprocket

1шт.

17

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - grain countershaft drive (Use 27 links from bulk chain 56989R91, 2 offset links 456928R91 and 1 connecting link)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 FOOT (3m) roll

1шт.

587372R91

CONNECTING LINK

LINK - chain, connecting

1шт.

456929R91

CHAIN LINK

LINK - chain, offset

1шт.
