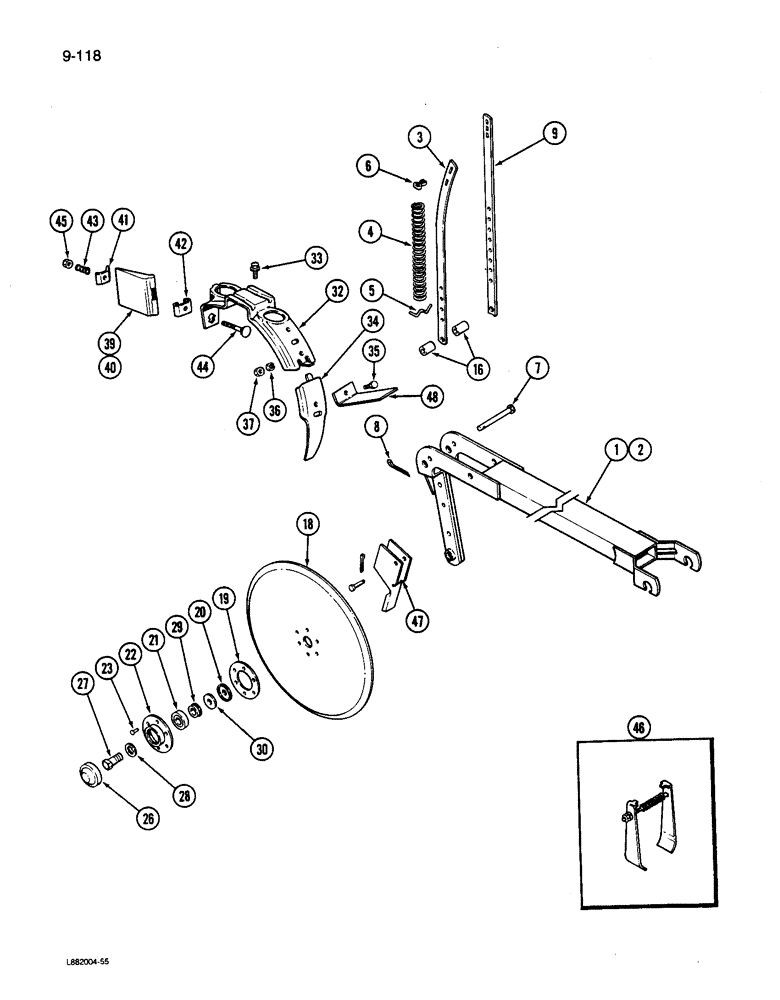

Запчасти Case IH 6200 (9-118) - DOUBLE DISC FURROW OPENER (09) - CHASSIS/ATTACHMENTS

1

819820C1

BAR

DRAWBAR - furrow opener, front

1шт.

2

819821C1

BAR

DRAWBAR - furrow opener, rear

1шт.

3

819348C1

BAR

- pressure spring rear, rank

1шт.

item #3 is deceiving. per print it is straight not curved.

1шт.

4

6626

SPRING

- pressure

1шт.

4

N42899

SPRING

- pressure

1шт.

REF #4-P/N 6626 IS A 9 GAUGE SPRING. P/N N42899 IS AN 11 GAUGE SPRING. THIS IS THE ONLY DIFFERENCE (REF CASE#551832).JBEDFORD 5/29/98. P/N N42899 HAS A RH SPIRAL AND P/N 6626 HAS A LH SPIRAL PER DLR 6244953-0 (DAN-PARTS MGR.)

1шт.

5

F6366

LOCK

- pressure spring

1шт.

6

605964R1

CLIP

- cotter, special flat

1шт.

7

J623

HEADED PIN,9.53mm OD x 88.9mm L

PIN - clevis

1шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

819352C1

BAR

- pressure spring front, rank

1шт.

16

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

- 3/8 x 1-1/16 inch

2шт.

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL

2шт.

18

603013R2

PLOW DISC

DISC - furrow opener

2шт.

19

602992R1

GASKET

- bearing retainer

1шт.

20

602994R1

FLANGE

- dirt seal

1шт.

21

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

22

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

23

104081

RIVET,But Hd, 1/4" x 1/2"

- binding head, 1/4 x 1/2 inch

6шт.

26

603012R1

DUST CAP

CAP - dust

2шт.

27

603010R1

BOLT (SPREADER)

BOLT - disc retaining, left

1шт.

27

603011R1

BOLT (SPREADER)

BOLT - disc retaining, right (Shown)

1шт.

28

141706

WASHER

- internal shakeproof, 11/16 inch

2шт.

29

602988R1

SPACER

- seal retainer

2шт.

30

464628R1

SEAL

- dirt

2шт.

32

819280C2

BOOT

- disc

1шт.

33

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - hex washer head, 5/16 NC x 1 inch

2шт.

34

819281C2

GUARD ASSY.

GUARD - boot

1шт.

35

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

36

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

120376

NUT,5/16"-18, G5

1шт.

843364C91

BLADE

SCRAPER ASSEMBLY - disc

1шт.

39

NSS

NOT SOLD SEPARAT

SCRAPER - disc, right

1шт.

40

NSS

NOT SOLD SEPARAT

SCRAPER - disc, left

1шт.

41

816668C1

LEDGER PLATE

SPREADER - scraper

1шт.

42

819808C1

HINGE

- scraper

1шт.

43

N62536

VALVE SPRING

SPRING - scraper

1шт.

44

27445R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 2-3/4 inch

1шт.

45

274881

WASHER

- hex lock, 5/16 inch NC

1шт.

46

819373C1

PACKAGE

BLADE ASSEMBLY - disc

1шт.

47

819208C1

DEFLECTOR

- fertilizer (Use with seperate delivery tube)

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

48

843191C1

SUPPORT

- boot reinforcing

1шт.
