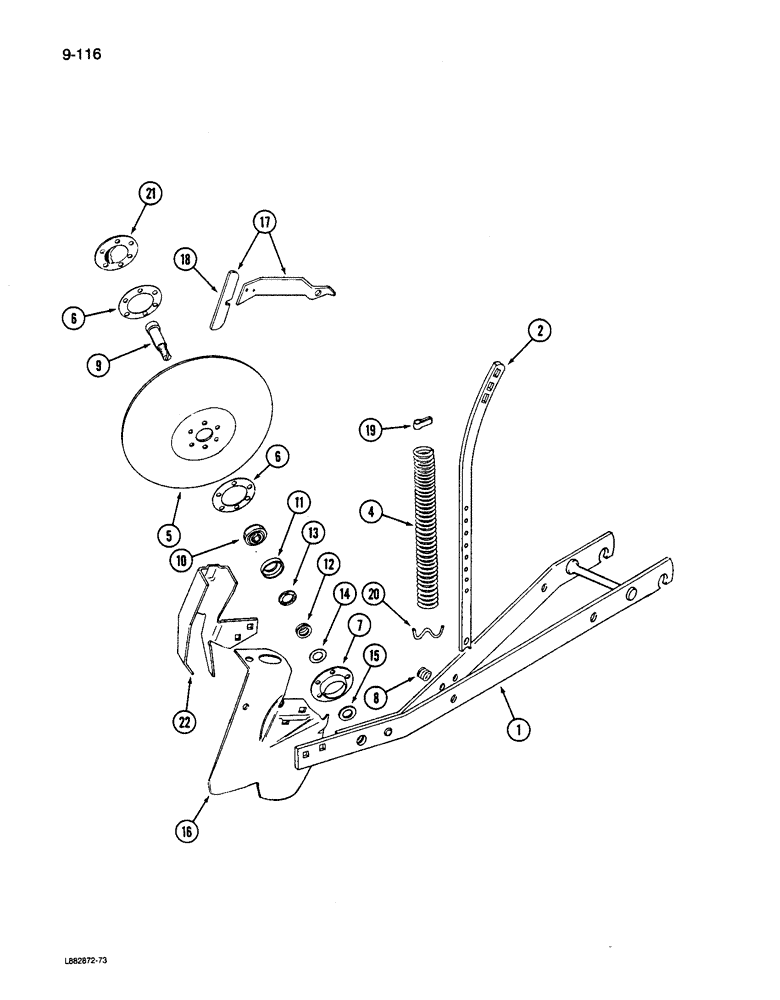

Запчасти Case IH 6200 (9-116) - SINGLE DISC FURROW OPENER (09) - CHASSIS/ATTACHMENTS

1

819114C91

BAR

DRAWBAR - front, left

1шт.

1

819115C91

BAR

DRAWBAR - front, right

1шт.

1

819112C91

BAR

DRAWBAR - rear, left

1шт.

1

819113C91

BAR

DRAWBAR - rear, right

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

- truss head, 3/8 x 1 inch

1шт.

2

819091C1

BAR

- pressure spring, front

1шт.

2

819092C1

BAR

- pressure spring, rear

1шт.

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN - headed, 3/8 x 3 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

4

6638

SPRING

- pressure bar

1шт.

5

603004R2

PLOW DISC

DISC - furrow opener single

1шт.

6

602992R1

GASKET

- bearing retainer

2шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

- binding head, 1/4 x 1/2 inch

6шт.

8

N32176

SPRING

- pressure bar location

1шт.

9

602987R1

BOLT

BOLT - disc

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-110

- hex, 5/8 inch NF

1шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

11

602994R1

FLANGE

- dirt seal

1шт.

12

464628R1

SEAL

- dirt

1шт.

13

602988R1

SPACER

- seal retainer

1шт.

14

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

2шт.

15

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch

1шт.

16

819191C2

BOOT

- single disc, left

1шт.

16

819192C2

BOOT

- singlle disc, right

1шт.

17

603620R11

BLADE

SCRAPER - single disc, left (Includes Ref 18 and rivets)

1шт.

17

603621R11

PACKAGE

SCRAPER - single disc, right

1шт.

18

W7008

BLADE

- disc scraper

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

19

605964R1

CLIP

- cotter, special flat

1шт.

20

F6366

LOCK

- pressure spring

1шт.

21

602990R1

CAP

RETAINER - bearing

1шт.

22

819165C1

BOOT

DEFLECTOR - single disc, left

1шт.

22

819166C1

BOOT

DEFLECTOR - single, disc, right

1шт.

634797R1

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL - single (Consists of Ref. numbers 5,6,7,9,10,11 and 21)

1шт.
