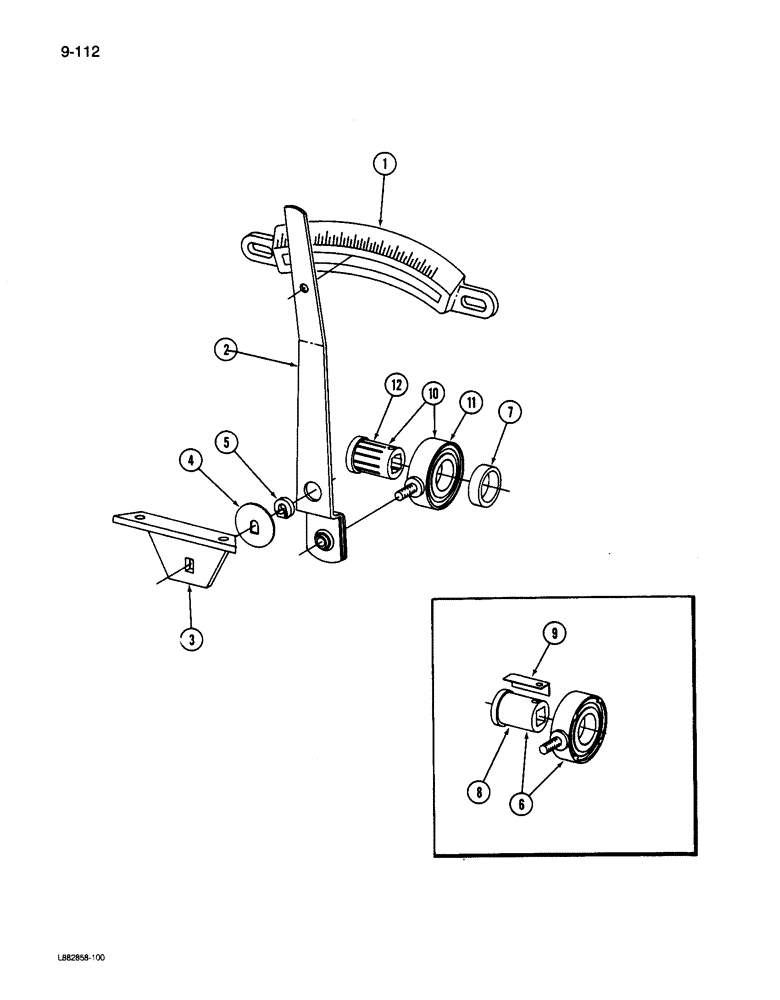

Запчасти Case IH 6200 (9-112) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS/ATTACHMENTS

1

603127R1

INDICATOR

- grain feed

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

815179C1

LEVER

- grain feed shifter

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

134238R1

WASHER

- flat, 11/32 x 1 x 3/64 inch

1шт.

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

2шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

1шт.

3

819361C1

BRACKET

SUPPORT - shifter lever

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

819263C1

WASHER

- shifter stop

1шт.

5

819264C1

BUSHING

- shifter stop

1шт.

6

609384R91

THRUST BEARING

ASSEMBLY - feed shifter (If equipped)(See Note B)

1шт.

7

609389R1

SPACER

- nylon, shifter

1шт.

8

609388R1

SPACER

- shifter bearing (Part of Ref. 6)

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

9

816573C1

SHIM

- lever 0.005 (Used only with Ref. 6)

1шт.

10

1279109C91

BEARING ASSY

ASSEMBLY - feed shifter

1шт.

11

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - feed shifter

1шт.

12

1279145C1

SPACER

- shifter bearing

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.
