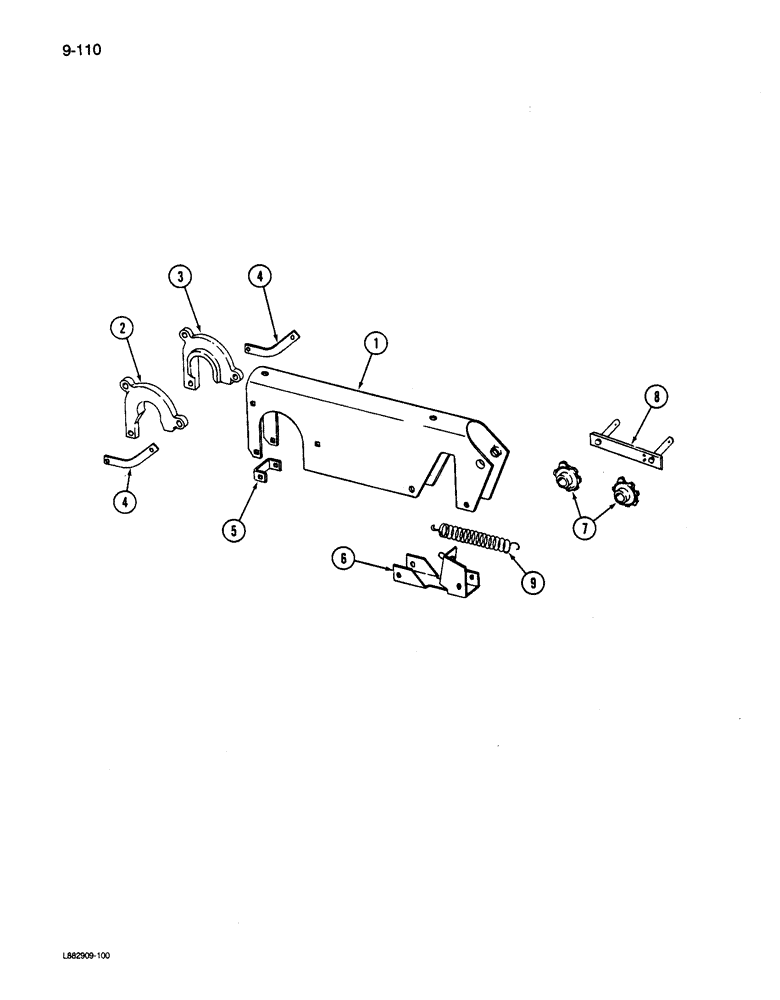

Запчасти Case IH 6200 (9-110) - MAIN DRIVE SHIELD (09) - CHASSIS/ATTACHMENTS

1

819459C1

SHIELD

- main drive chain

1шт.

2

601225R1

SHIELD

BEARING - shield, right

1шт.

3

601226R1

SHIELD

BEARING - shield, left

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

19576R1

BOLT,Short NK, 5/16"-18 x 7/8", G2, Full Thd

- round head square neck, 5/16 NC x 7/8 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

4

605979R1

BRACE

STRAP - bearing

2шт.

5

601241R1

CHANNEL

CLIP - shield rear tie

1шт.

6

816617C1

SUPPORT

- chain shield

1шт.

24812R1

HEADED PIN,1/4" x 2"

PIN, HEADED, 1/4" x 2"

2шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

7

819457C1

SPROCKET

- chain tightener 6 tooth

2шт.

8

819455C1

BRACKET

- chain tightener

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

6шт.

9

626206R1

SPRING

- tightener rod

1шт.
