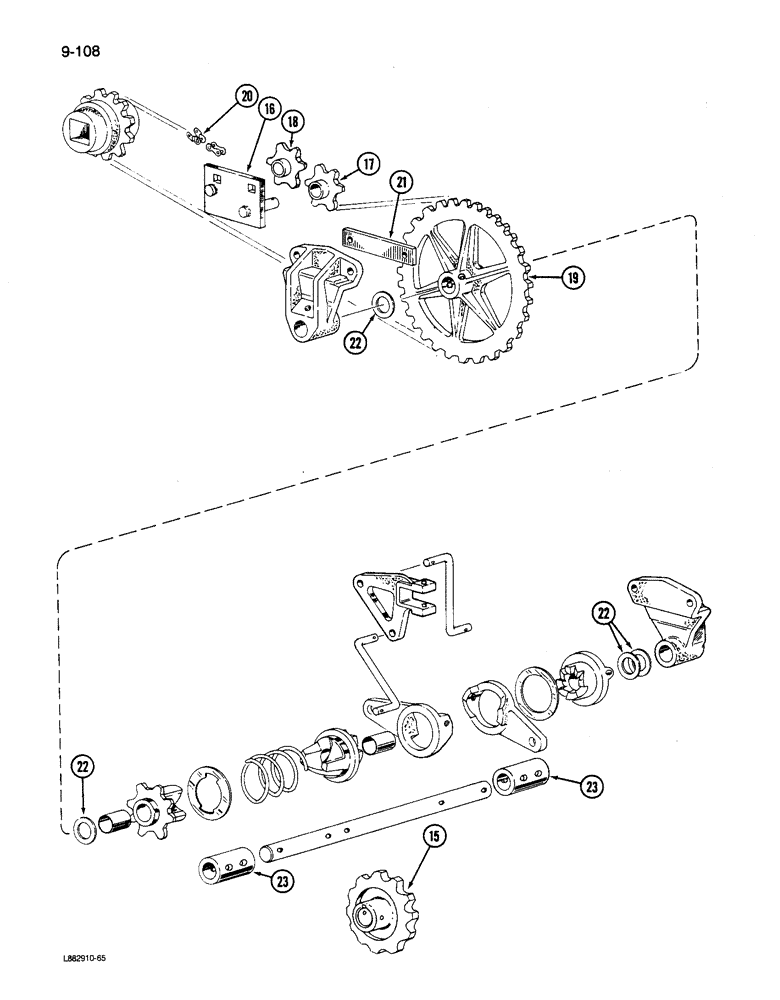

Запчасти Case IH 6200 (9-108) - MAIN DRIVE, CONTD (09) - CHASSIS/ATTACHMENTS

15

603374R1

SPROCKET ASSY.

SPROCKET - power lift drive

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

16

818407C1

BRACKET

- main drive chain idler (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)

1шт.

16

818407C1

BRACKET

- main drive chain idler (14x6, 16x6, for slow speed grain drive)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

17

819457C1

SPROCKET

- main drive idler 6 tooth (20x6, 24x6, 28x6, 20x7, 24x7 and 16x8)

1шт.

18

819457C1

SPROCKET

- slow speed grain drive 6 tooth

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

19

816019C1

DRIVE SPROCKET

SPROCKET - main driven 25 tooth

1шт.

Q850

PIN

- headed, 3/8 x 1-7/8 inch

2шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

20

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - main drive (Use 87 links from bulk chain 569089r91, 1 offset link 456929R1 and 1 connecting link 587372R91)

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - 10 foot (3m) roll

1шт.

456929R91

CHAIN LINK

LINK - chain, offset

1шт.

587372R91

CONNECTING LINK

LINK - chain, connecting

1шт.

21

816022C1

BAR

- bearing spacer (14x6, 16x6)

1шт.

22

609836R1

WASHER

- flat, 1-1/32 x 1-3/4 x 3/64 inch

1шт.

23

816429C1

SPACER

- power lift shaft coupling (20x6, 24x6, 28x6, 20x7, 24x7, and 16x8)

2шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN - headed, 3/8 x 1-3/4 inch

4шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.
