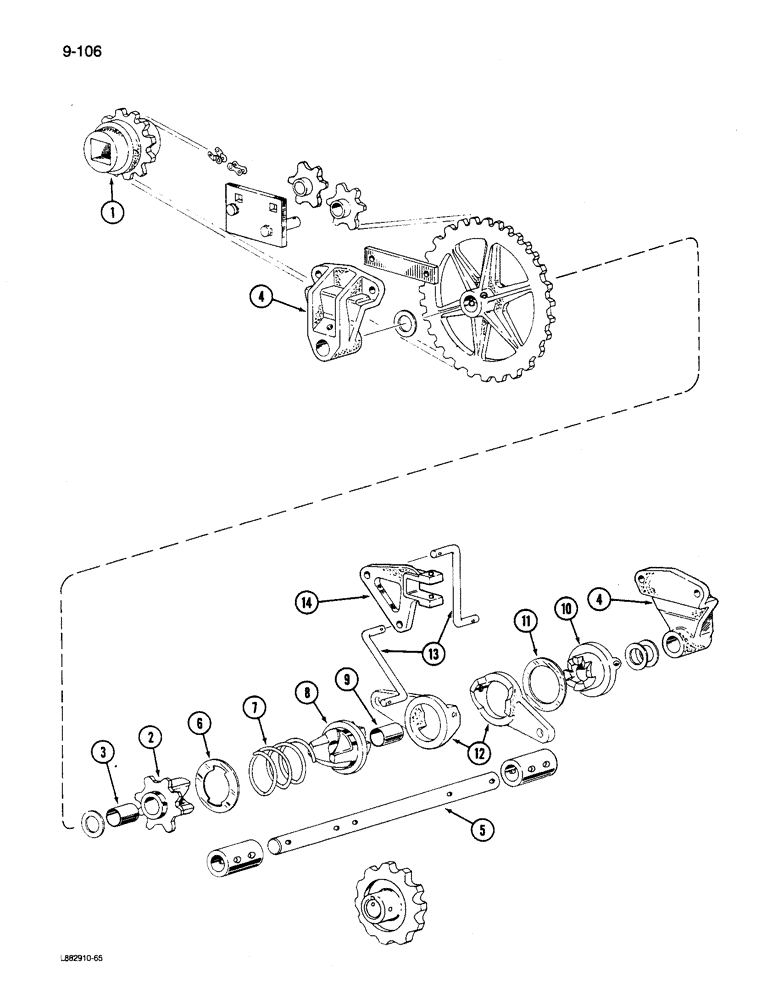

Запчасти Case IH 6200 (9-106) - MAIN DRIVE (09) - CHASSIS/ATTACHMENTS

1

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

2

816033C11

DRIVE SPROCKET

SPROCKET ASSEMBLY - grain drive clutch

1шт.

3

289587R1

BUSHING

- clutch sprocket

1шт.

4

816021C1

COUNTERSHAFT

BEARING - main drive countershaft (14x6, 16x6)

3шт.

4

816021C1

COUNTERSHAFT

BEARING - main drive countershaft (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, (1 used per bearing) 65º, 1/8" NPT x 7/8" lg

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(14x6,16x6) Hex, 3/8"-16 x 1 1/2", G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

816024C1

SHAFT

- main drive counter (14x6, 16x6)

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

5

816023C1

SHAFT

- main drive counter (20x6, 24x6, 28x6, 20x7, 24x7, 16x8)

1шт.

6

816025C1

WASHER

- clutch

1шт.

7

816026C1

SPRING

- clutch

1шт.

8

816027C11

CLUTCH

ASSEMBLY - driver

1шт.

9

298401R1

BUSHING

- driver clutch

1шт.

10

816028C1

CLUTCH

- driver

1шт.

N32207

HEADED PIN,3/8" x 3 3/4"

PIN - headed, 3/8 x 3-3/4 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

- main drive clutch

1шт.

12

816030C1

CAM

- throwout

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

13

816031C1

ROD

- clutch lift arm

2шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

4шт.

14

816032C1

ARM

- clutch lift

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.
