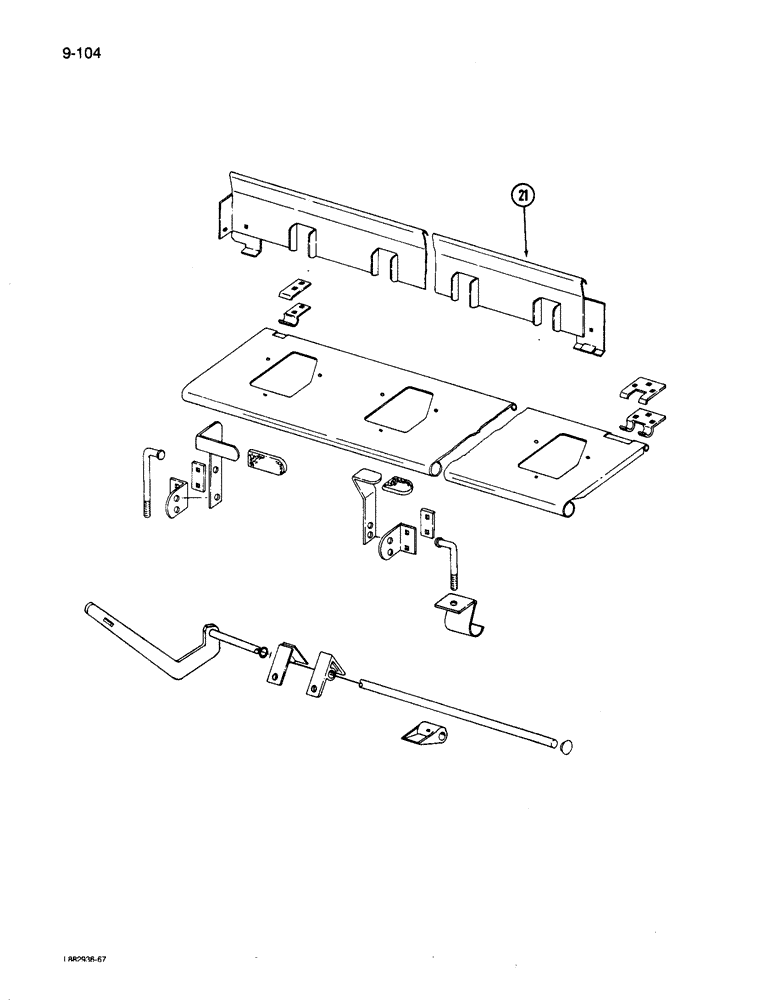

Запчасти Case IH 6200 (9-104) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

21

816247C1

PANEL ASSEMBLY - back (14x6)

1шт.

21

816248C1

PANEL

ASSEMBLY - back (16x6)

1шт.

21

816249C1

PANEL

ASSEMBLY - back left (20x6)

1шт.

21

816250C1

PANEL

ASSEMBLY - back right (20x6)

1шт.

21

816251C1

PANEL

ASSEMBLY - back left (24x6)

1шт.

21

816252C1

PANEL

ASSEMBLY - back right (24x6)

1шт.

21

816253C1

PANEL

ASSEMBLY - back left (20x7)

1шт.

21

816254C1

PANEL

ASSEMBLY - back right (20x7)

1шт.

21

816255C1

PANEL

ASSEMBLY - back left (24x7)

1шт.

21

816256C1

PANEL

ASSEMBLY - back right (24x7)

1шт.

21

816905C1

PANEL

ASSEMBLY - back left (28x6)

1шт.

21

816906C1

PANEL

ASSEMBLY - back right (28x6)

1шт.

21

819095C1

PANEL

ASSEMBLY - back left (16x8)

1шт.

21

819096C1

PANEL ASSEMBLY - back right (16x8)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
