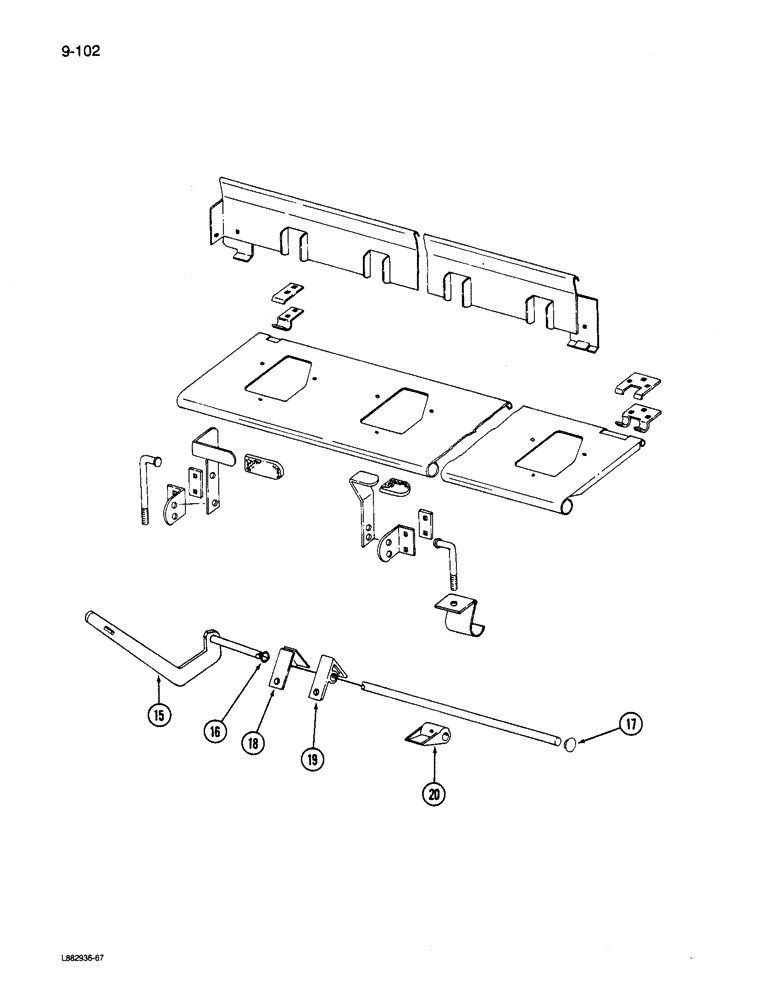

Запчасти Case IH 6200 (9-102) - FERTILIZER DROP BOTTOM, CONTD (09) - CHASSIS/ATTACHMENTS

15

NSS

NOT SOLD SEPARAT

ROD - gate, 87-5/8 inch, (14x6) (Order 817537C1 and, Serial Range: cut-length)

1шт.

817537C1

ROD

- bulk stock

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 99-5/8 inch, (16x6) (Order 817537C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 64-9/16 inch, left (20x6) (Order 817433C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 64-9/16 inch, right (20x6) (Order 817537C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 74-1/16 inch, left (24x6, 20x7) (Order 817433C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 74 -1/16 inch, right (24x6, 20x7) (Order 817537C1 and, Serial Range: cut-length)

1шт.

15

817433C1

ROD

- gate, left (24x7, 28x6)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 64-9/16 inch, left (16x8) (Order 817433C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 85-9/16 inch, right (24x7, 28x6) (Order 817537C1 and, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

ROD - gate, 64-9/16 inch, right (16x8) (Order 817537C1 and, Serial Range: cut-length)

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC (1 used per rod)

1шт.

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

1шт.

16

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch class 5 (1 per rod)

1шт.

17

816848C1

PLUG

- panel filler (14x6, 16x6)

1шт.

18

607276R2

SUPPORT

BEARING - gate rod (5 used 14x6; 7 used 16x6; 8 used 20x6, 20x7, 24x6, 16x8; 10 used 24x7, 28x6)

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19

603455R1

LEVER GUIDE

BEARING - gate rod center (20x6, 24x6, 28x6, 20x7, 24x7, and 16x8)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20

816736C1

GATE ASSY

GATE - fertilizer feed (1 used per feed)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

252552C1

NUT

- weld, 1/4 inch NC (Not welded)

1шт.
